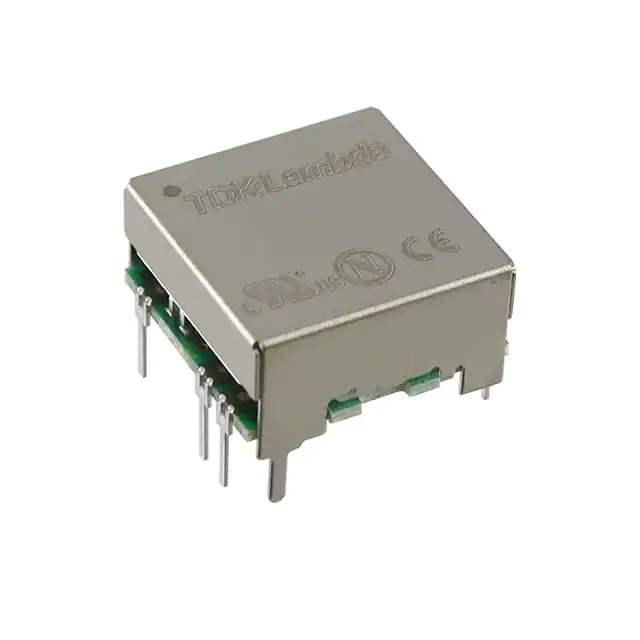

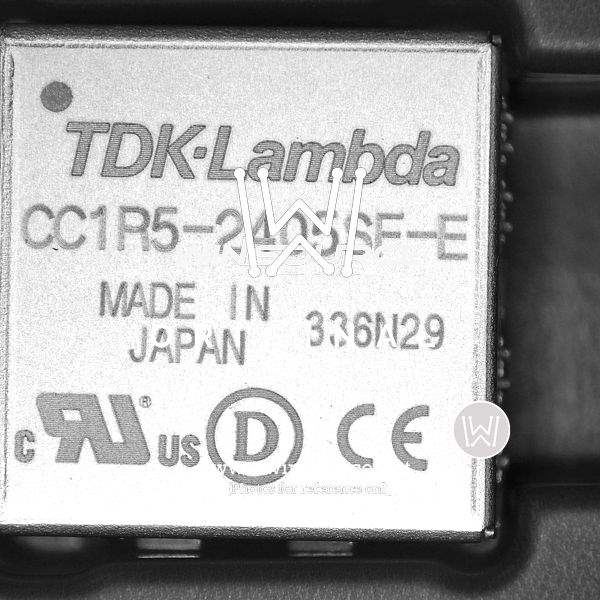

Same model may have multiple batches, images only for reference.

CC1R5-2405SF-E

Name: CC1R5-2405SF-E
Brand: TDK-Lambda Americas Inc.
SKU: 576740
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

Part No	CC1R5-2405SF-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1.5W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc.
Series	CC-E (1.5W)
Package	Tray
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	300mA
Power (Watts)	1.5 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	7-DIP Module
Size / Dimension	0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm)
Control Features	Enable, Active Low
Base Product Number	CC1R5
Standard Package	10 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	576740-CC1R5-2405SF-E
Ultra Librarian 3D Model	Ultra Librarian CC1R5-2405SF-E CAD Model

Alternative Products

Description

The CC1R5-2405SF-E is a 1.5W isolated module DC-DC converter.

Series: CC-E
Package: Tray
Mounting: Board Mount
Application: ITE (Commercial)
Size: 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm)
Package: 7-DIP Module
Power Rating: 1.5W
Input Voltage Range: 18V to 36V
Output Voltage: 5V
Maximum Output Current: 300mA
Manufacturer: TDK-Lambda Americas Inc.
Product Status: Active
ECCN: EAR99
