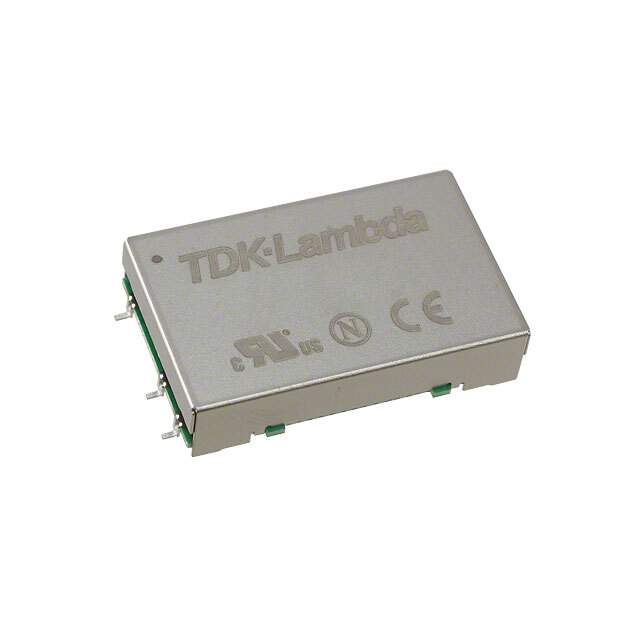

CC10-2412SR-E Real Image
Same model may have multiple batches, images only for reference.

CC10-2412SR-E

Part No CC10-2412SR-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12-15V 10W / Isolated Module DC DC Converter 1 Output 12 ~ 15V 1A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (10W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12 ~ 15V
Current - Output (Max) 1A
Power (Watts) 10 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 7-SMD Module
Dimension 1.40" L x 0.89" W x 0.35" H (35.6mm x 22.6mm x 8.8mm)
Control Features Enable, Active Low
Base Product Number CC10-2412
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 445-3308,CC10-2412SR-E-ND,CC102412SRE
Standard Package 10
Win Source Part Number 1024450-CC10-2412SR-E
Ultra Librarian 3D Model Ultra Librarian CC10-2412SR-E CAD Model

Description

The CC-E (10W) 1024450-CC10-2412SR-E is an isolated module DC-DC converter from TDK-Lambda Americas Inc that comes in a tray package.

  • Power: 10 W
  • Input Voltage: 18V to 36V
  • Control Feature: Enable, active-low
  • Voltage Isolation: 500 V
  • Output: One
  • Maximum Output Current: 1A
  • Output Voltage Range: 12 ~ 15V
  • Package/Case: 7-SMD module
  • Mounting: SMD (SMT)
  • Dimension: 1.40" L x 0.89" W x 0.35" H (35.6mm x 22.6mm x 8.8mm)
  • ECCN: EAR99 compliant
  • MSL Level: Level 1-rated
  • HTSUS: 8504.40.9580
