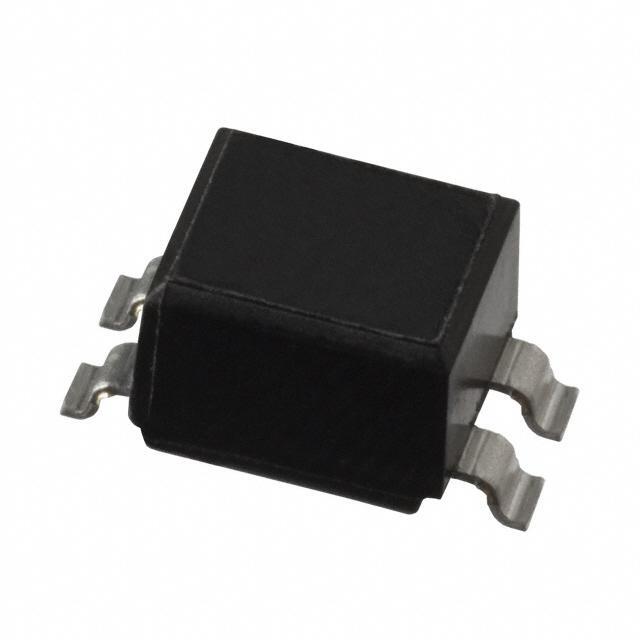

ZJYS51R5-2PT TDK Corporation
Same model may have multiple batches, images only for reference.

ZJYS51R5-2PT

Part No ZJYS51R5-2PT
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 2A 2LN 200 OHM SMD
Datasheet
ZJYS51R5-2PT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 200 Ohm @ 100MHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 120 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.200" (5.08mm)
Dimension Horizontal, 4 Gull Wing
Win Source Part Number 092949-ZJYS51R5-2PT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ZJYS51R5-2PT CAD Model

Description

The ZJYS51R5-2PT is a signal line filter that is commonly used in electronic devices.

  • Voltage Rating: 50V
  • Current Rating: 2A
  • Impedance: 200 Ohm @ 100MHz
  • DC Resistance: 120 mOhm
  • Height: 0.200 inches
  • Package: Horizontal, 4 gull wing
  • Popularity: High
