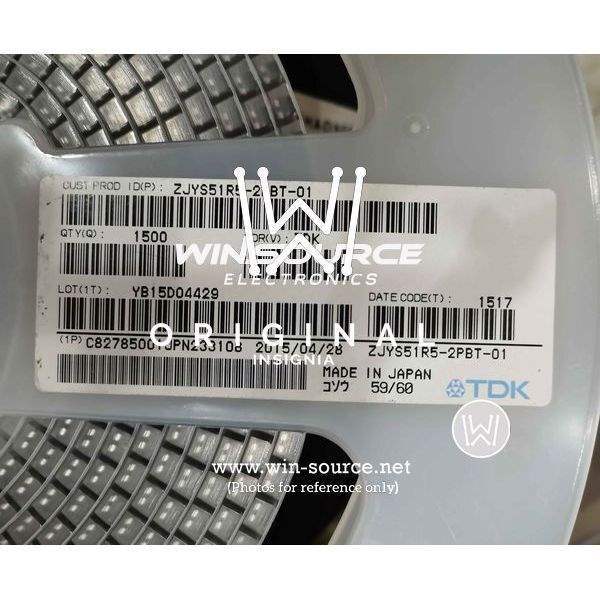

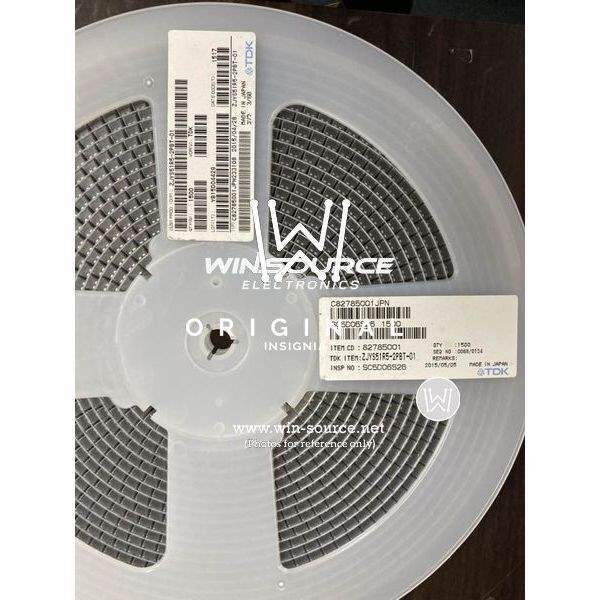

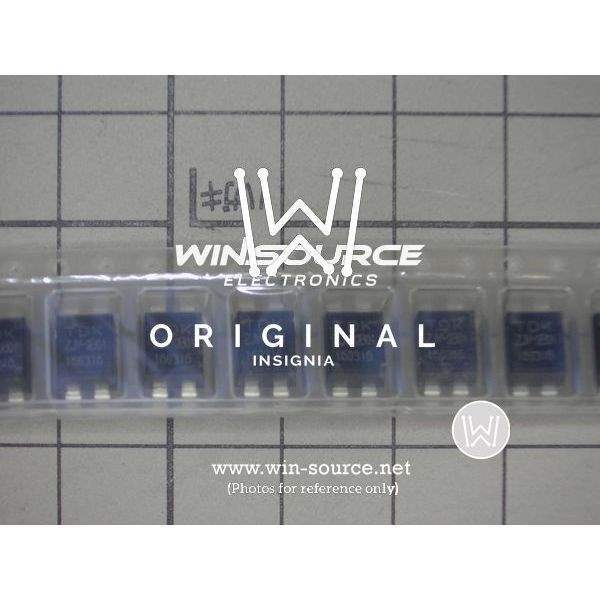

ZJYS51R5-2PBT-01 TDK Corporation ZJYS51R5-2PBT-01 real image ZJYS51R5-2PBT-01 label picture ZJYS51R5-2PBT-01 label picture 2
Same model may have multiple batches, images only for reference.
ZJYS51R5-2PBT-01 TDK Corporation ZJYS51R5-2PBT-01 real image ZJYS51R5-2PBT-01 label picture ZJYS51R5-2PBT-01 label picture 2
ZJYS51R5-2PBT-01 TDK Corporation ZJYS51R5-2PBT-01 real image ZJYS51R5-2PBT-01 label picture ZJYS51R5-2PBT-01 label picture 2
Same model may have multiple batches, images only for reference.

ZJYS51R5-2PBT-01

Part No ZJYS51R5-2PBT-01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description Common Mode Chokes Dual 58.6uH 600Ohm 100MHz 2A 0.12Ohm DCR SMD T/R / CMC 2A 2LN 200 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 200 Ohm @ 100MHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 120 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.200" (5.08mm)
Dimension Horizontal, 4 Gull Wing
Win Source Part Number 036726-ZJYS51R5-2PBT-01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name ZJYS
Introduction Date July 26, 2001
Country of Origin United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ZJYS51R5-2PBT-01 CAD Model

Description

This component is a filter type signal line and is mounted using SMD (SMT) technology.

  • Voltage Rating: 50V
  • Current Rating: 2A
  • Height: 0.200" (5.08mm)
  • Lines: 2
  • Impedance: 200 Ohm @ 100MHz
  • DC Resistance (DCR) (Max): 120 mOhm
  • Application: Filters
  • Temperature Range: -25°C to 85°C
