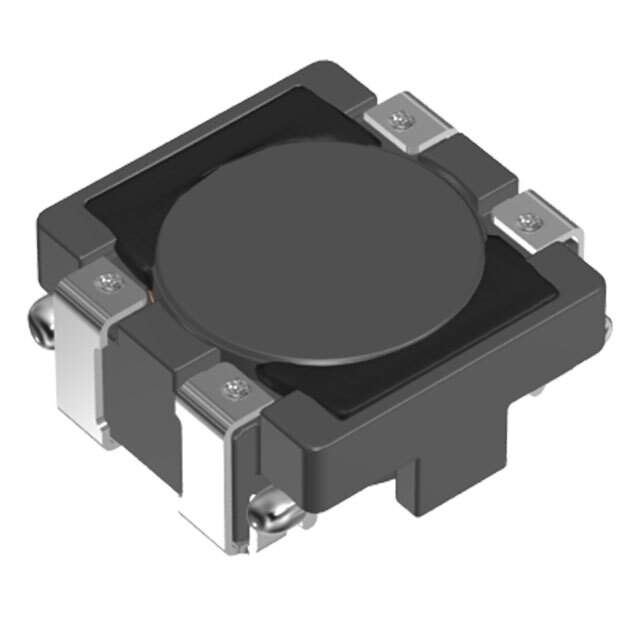

ACM4520V-901-2P-T00

Part No ACM4520V-901-2P-T00
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 1.2A 2LN 900OHM SMD AEC-Q200
Datasheet
ACM4520V-901-2P-T00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Series ACM-V
Packaging Reel - TR
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 900 Ohm @ 100MHz
Current Rating (Maximum) 1.2A
DC Resistance (DCR) (Maximum) 60 mOhm
Voltage Rating - DC 50V
Operating Temperature Range -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD
Size 0.185" L x 0.177" W (4.70mm x 4.50mm)
Height (Maximum) 0.079" (2.00mm)
Package Horizontal, 4 PC Pad
Manufacturer Homepage www.tdk.com
Win Source Part Number 736759-ACM4520V-901-2P-T00
Popularity Medium
Supply and Demand Status Limited
Quantity per package 800
Family Name ACM4520V
Introduction Date March 05, 2013
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ACM4520V-901-2P-T00 CAD Model

Description

The ACM4520V-901-2P-T00 filter from TDK Corporation is an excellent solution for power line filtering in a variety of applications.

  • Size: 0.185" L x 0.177" W (4.70mm x 4.50mm)
  • Height: 0.079" (2.00mm)
  • Current Rating: 1.2A
  • DC Resistance (DCR): 60 mOhm
  • Series: ACM4520V
  • Suitable for: Use in AEC-Q200 rated applications
  • Voltage Rating: 50V
  • Package: Reel with a standard package of 800
  • Halogen-Free: Yes
  • REACH Compliant: Yes
