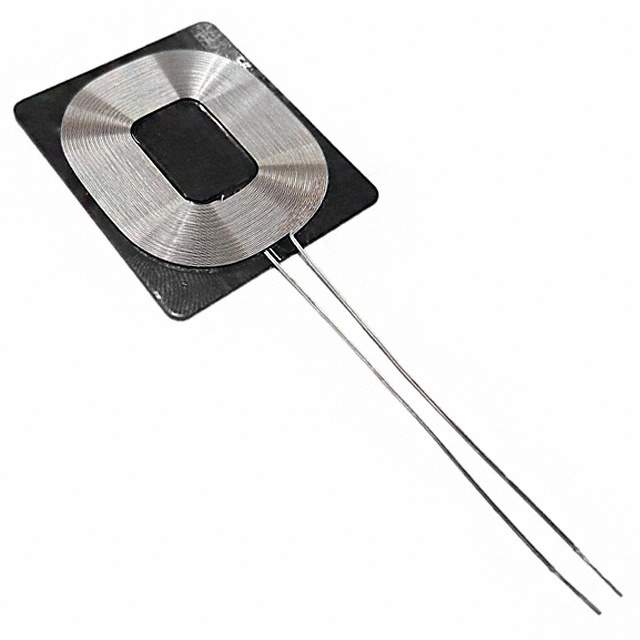

WR-383250-17M2-G Real Image
Same model may have multiple batches, images only for reference.

WR-383250-17M2-G

Part No WR-383250-17M2-G
Manufacturer TDK Corporation
Catalog Wireless Charging Coils
Description INTEGRATED WIRELESS POWER SUPPLY RECEIVER | RX 1 COIL 1 LYR BIFILAR 11.1UH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Status Obsolete
Function Receiver
Type 1 Coil, 1 Layer, Bifilar
Inductance 11.1μH
Tolerance ±5%
DC Resistance (DCR) 270mOhm Max
Temperature Range - Operating -30°C ~ 70°C
Parts Dimension 1.50" L x 1.26" W x 0.04" H (38.1mm x 32.0mm x 1.0mm)
Manufacturer Pack Quantity 360
MSL Level 1 (Unlimited)
Win Source Part Number 1280495-WR-383250-17M2-G
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian WR-383250-17M2-G CAD Model

Description

The TDK Corporation WR-383250-17M2-G is a 1 coil, 1 layer, bifilar inductor.

  • Inductor Type: Bifilar
  • Number of Coils: 1
  • Number of Layers: 1
  • Inductance: 11.1μH
  • Tolerance: ±5%
  • DC Resistance: 270mOhm max
  • Product Status: Obsolete
  • Supply and Demand: Balanced
