Same model may have multiple batches, images only for reference.

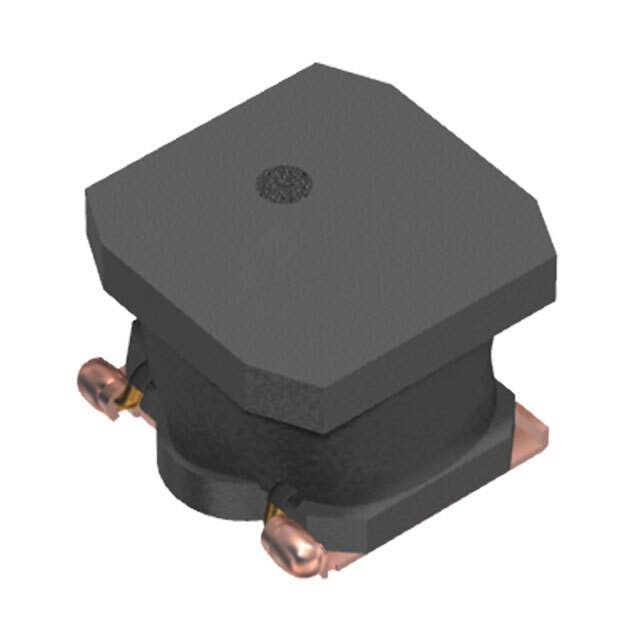

VLS6045EX-1R2N Real Image
Same model may have multiple batches, images only for reference.

VLS6045EX-1R2N

Part No VLS6045EX-1R2N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.2UH 5.4A 14 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 1.2μH
Tolerance ±30%
Current Rating (Amps) 5.4A
Shielding Shielded
DC Resistance (DCR) 14mOhm
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803715-VLS6045EX-1R2N
Ultra Librarian 3D Model Ultra Librarian VLS6045EX-1R2N CAD Model

Description

The TDK VLS6045EX-1R2N is a wirewound shielded inductor.

  • Inductance: 1.2μH
  • Tolerance: ±30%
  • Size: 6.00mm x 6.00mm
  • Mounting: SMD
  • DC Resistance: 14mΩ
  • Temperature Range: -40°C to 105°C
  • Current Rating: 5.4A
  • Package: Reel
  • Height: 4.50mm (Seated)
  • Series: TDK Corporation
  • Manufacturer Pack Quantity: 1,500
