Same model may have multiple batches, images only for reference.

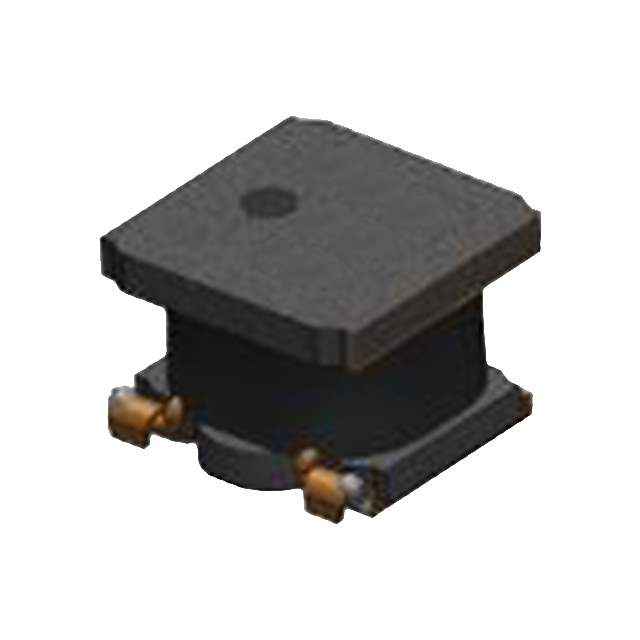

VLS5045EX-3R3N Real Image
Same model may have multiple batches, images only for reference.

VLS5045EX-3R3N

Part No VLS5045EX-3R3N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 4.2A 35.1 MOHM / Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±30%
Current Rating (Amps) 4.2A
Current - Saturation 5.2A
Shielding Shielded
DC Resistance (DCR) 35.1mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803527-VLS5045EX-3R3N
Ultra Librarian 3D Model Ultra Librarian VLS5045EX-3R3N CAD Model

Description

The TDK Corporation VLS5045EX-3R3N is a wirewound inductor manufactured by TDK Corporation.

  • Shielded: Yes
  • Core Material: Ferrite
  • Inductance: 3.3μH
  • Tolerance: ±30 percent
  • DC Resistance: 35.1mOhm
  • Saturation Current: 5.2A
  • Operating Temperature: -40°C to 105°C
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1,500
