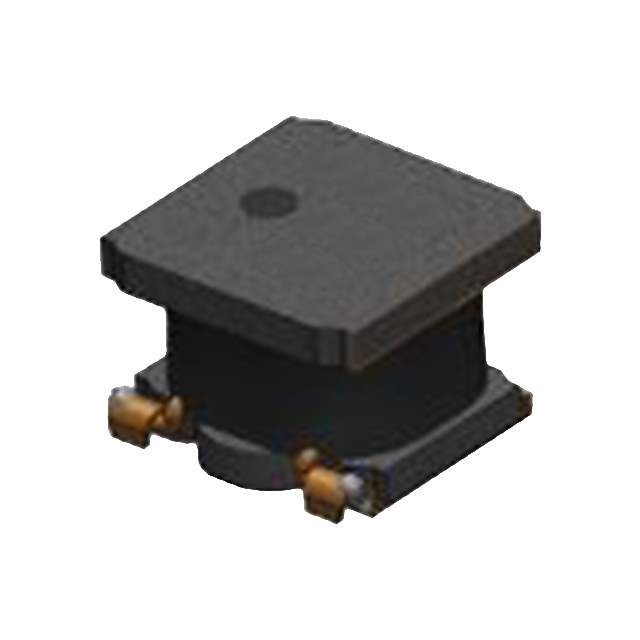

VLS5045EX-220M Real Image
Same model may have multiple batches, images only for reference.

VLS5045EX-220M

Part No VLS5045EX-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 1.8A 162.5 MOHM / Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating (Amps) 1.8A
Current - Saturation 2A
Shielding Shielded
DC Resistance (DCR) 162.5mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803581-VLS5045EX-220M
Ultra Librarian 3D Model Ultra Librarian VLS5045EX-220M CAD Model

Description

The TDK Corporation 803581-VLS5045EX-220M is a wirewound inductor with a ferrite core.

  • Inductance: 22μH
  • Tolerance: ±20%
  • Current: 1.8A
  • DC Resistance: 162.5mOhm Max
  • Operating Temperature: -40°C to 105°C
  • Dimensions: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • Height: 0.177" (4.50mm)
  • Shielded: Yes
  • Mounting: SMD
  • Supply and Demand: Balance
  • Manufacturer Pack Quantity: 1,500
