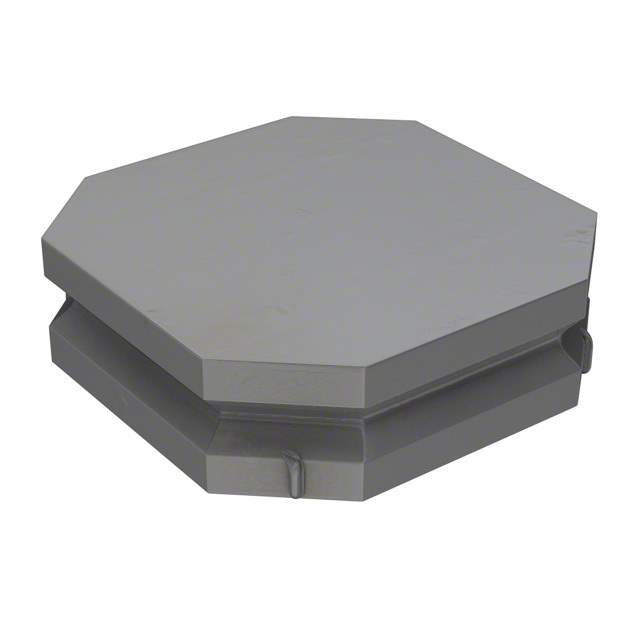

VLS4012ET-3R3M Real Image
Same model may have multiple batches, images only for reference.

VLS4012ET-3R3M

Part No VLS4012ET-3R3M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 3.3uH 20% 1MHz Ferrite 2A 0.102Ohm DCR 1515 T/R / FIXED IND 3.3UH 1.4A 102 MOHM
Datasheet
VLS4012ET-3R3M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±20%
Current Rating 1.4A
Current - Saturation 1.4A
DC Resistance (DCR) 102 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 1117289-VLS4012ET-3R3M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name VLS-E
Introduction Date May 20, 2002
ECCN EAR99
Country of Origin United Kingdom
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian VLS4012ET-3R3M CAD Model

Description

The VLS4012ET-3R3M is a wirewound inductor with an inductance of 3.3μH and a current rating of 1.4A.

  • Height: 0.047" (1.20mm)
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • DC Resistance (DCR): 102 mOhm Max
  • Material: Ferrite
  • Saturation Current: 1.4A
  • ECCN: EAR99
  • Manufacturer: TDK Corporation
