Same model may have multiple batches, images only for reference.

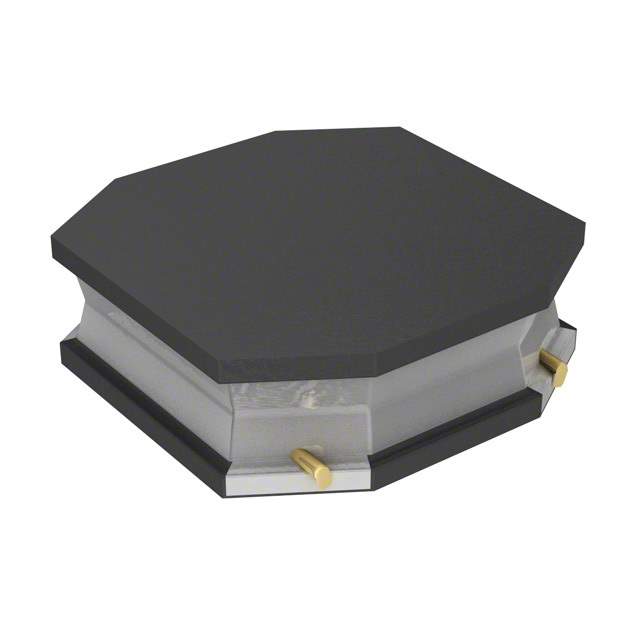

VLS3010T-2R2M1R3 Real Image
Same model may have multiple batches, images only for reference.

VLS3010T-2R2M1R3

Part No VLS3010T-2R2M1R3
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.7A 116 MOHM
Datasheet
VLS3010T-2R2M1R3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.7A
Current - Saturation 1.2A
DC Resistance (DCR) 116 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 036387-VLS3010T-2R2M1R3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLS3010T-2R2M1R3 CAD Model

Description

The TDK Corporation VLS3010T-2R2M1R3 is a wirewound type inductor with a current rating of 1.7A and an inductance of 2.2μH.

  • Height: 0.039" (1.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Current Saturation: 1.2A
  • DC Resistance: 116 mOhm Max
  • Status: not for new designs
  • Temperature Range: -40°C to 105°C
