Same model may have multiple batches, images only for reference.

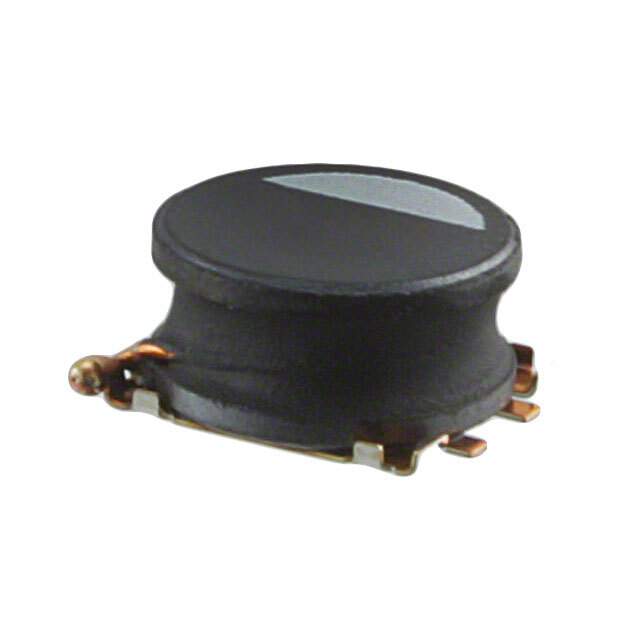

VLP8040T-331M Real Image
Same model may have multiple batches, images only for reference.

VLP8040T-331M

Part No VLP8040T-331M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Wound Ferrite | FIXED IND 330UH 500MA 1.1 OHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 330μH
Tolerance ±20%
Current Rating (Amps) 500mA
Current - Saturation 500mA
Shielding Shielded
DC Resistance (DCR) 1.1Ohm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.315" L x 0.303" W (8.00mm x 7.70mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 735717-VLP8040T-331M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLP8040T-331M CAD Model

Description

The TDK Corporation VLP8040T-331M is a wirewound shielded inductor that comes in a non-standard manufacturer package.

  • Inductance: 330μH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Maximum DC Resistance: 1.1Ohm
  • Current Saturation: 500mA
  • Operating Temperature: -40°C to 105°C
  • Package Dimensions: 0.315" L x 0.303" W (8.00mm x 7.70mm)
  • Height: 0.157" (4.00mm)
  • Supply and demand status: Balanced
