Same model may have multiple batches, images only for reference.

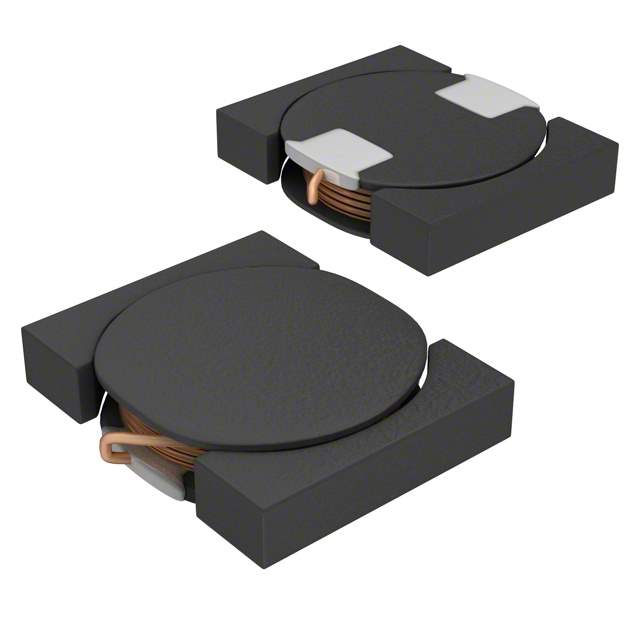

VLF504010MT-220M-CA Real Image
Same model may have multiple batches, images only for reference.

VLF504010MT-220M-CA

Part No VLF504010MT-220M-CA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 780MA 600 MOHM / Inductor Power Shielded Wirewound 22uH 20% 1MHz Ferrite 0.78A 0.6Ohm DCR Automotive T/R
Datasheet
VLF504010MT-220M-CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLF-M-CA
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 780mA
Current - Saturation 610mA
Shielding Shielded
DC Resistance (DCR) 600 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 1MHz
Mounting SMD
Package Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 799108-VLF504010MT-220M-CA
Popularity Medium
Supply and Demand Status Limited
Family Name VLF-M
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian VLF504010MT-220M-CA CAD Model

Description

The VLF504010MT-220M-CA is an electronic component manufactured by TDK Corporation.

  • Type: Wirewound inductor
  • Shielding: Shielding feature
  • Inductance: 22μH
  • Current Rating: 780mA
  • Operating Temperature: -40°C to 105°C
  • Tolerance: ±20%
  • Mounting: SMD
  • Package: Nonstandard
  • Supply and Demand Status: Limited
