Same model may have multiple batches, images only for reference.

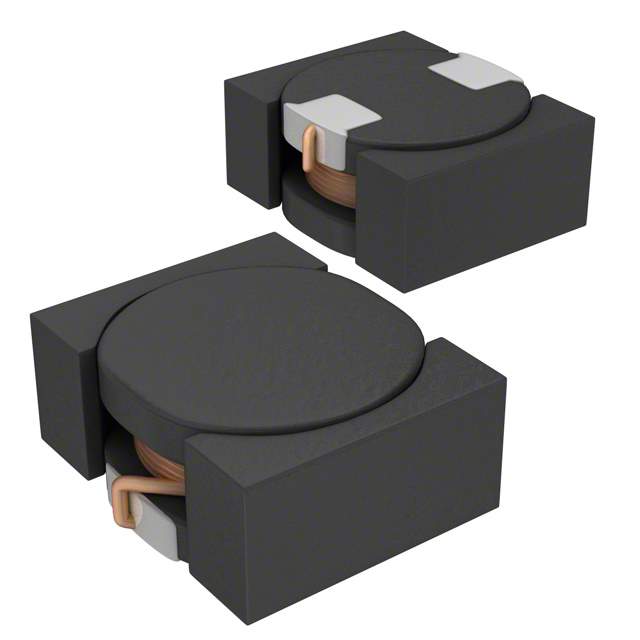

VLF302515MT-220M Real Image
Same model may have multiple batches, images only for reference.

VLF302515MT-220M

Part No VLF302515MT-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 750MA 490 MOHM / Inductor Power Shielded Wirewound 22uH 20% 1MHz Ferrite 0.75A 0.49Ohm DCR T/R
Datasheet
VLF302515MT-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLF-MT
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 750mA
Current - Saturation 460mA
Shielding Shielded
DC Resistance (DCR) 490 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 1MHz
Mounting SMD
Package Nonstandard
Dimension 0.118" L x 0.098" W (3.00mm x 2.50mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Win Source Part Number 799106-VLF302515MT-220M
Popularity Medium
Supply and Demand Status Balance
Family Name VLF-M
ECCN EAR99
Country of Origin United Kingdom
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian VLF302515MT-220M CAD Model

Description

The TDK Corporation VLF302515MT-220M is a wirewound inductor, coil, and choke component manufactured by TDK Corporation.

  • Series: VLF-MT
  • Shielding: Shielded
  • Current Rating: 750mA
  • Inductance: 22μH
  • Tolerance: ±20%
  • Mounting: SMD
  • Package: Nonstandard
  • Win Source Part Number: 799106-VLF302515MT-220M
  • EOL Date: 2022 (estimated)
