Same model may have multiple batches, images only for reference.

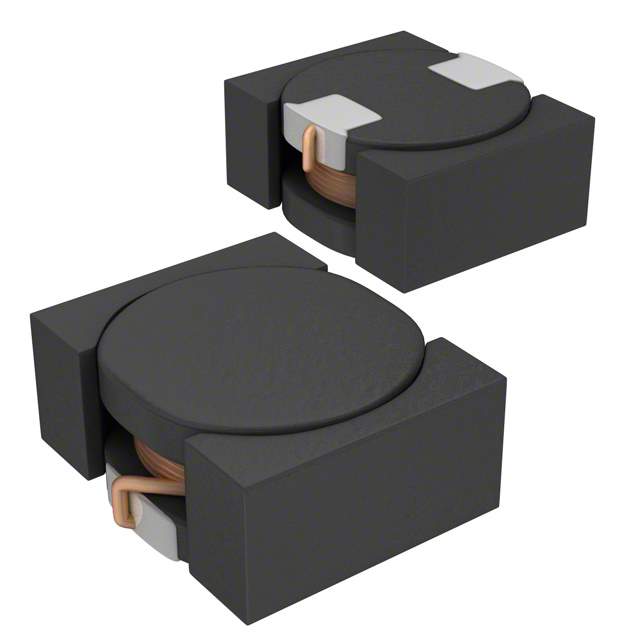

VLF302515MT-1R5N Real Image
Same model may have multiple batches, images only for reference.

VLF302515MT-1R5N

Part No VLF302515MT-1R5N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.5UH 3.14A 38 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 1.5μH
Tolerance ±30%
Current Rating (Amps) 3.14A
Current - Saturation 1.84A
Shielding Shielded
DC Resistance (DCR) 38mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.118" L x 0.098" W (3.00mm x 2.50mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806840-VLF302515MT-1R5N
Ultra Librarian 3D Model Ultra Librarian VLF302515MT-1R5N CAD Model

Description

{"ProductId":745421,"FormattedDescription":"

The TDK Corporation 806840-VLF302515MT-1R5N is a wirewound electronic component with a shielded packaging.

  • Inductance: 1.5µH
  • Tolerance: ±30%
  • Material: Ferrite
  • Maximum DC Resistance (DCR): 38mOhm
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 2,000
  • Manufacturer: TDK Corporation
  • Manufacturer Package: Nonstandard
"}
