Same model may have multiple batches, images only for reference.

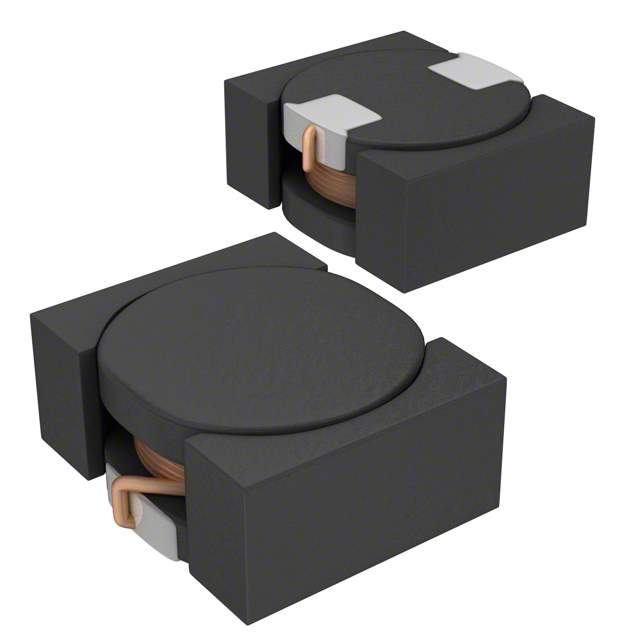

VLF302512MT-150M Real Image
Same model may have multiple batches, images only for reference.

VLF302512MT-150M

Part No VLF302512MT-150M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 15UH 800MA 448MOHM SMD  /  15 µH Shielded Drum Core, Wirewound Inductor 800 mA 448mOhm Max Nonstandard
Datasheet
VLF302512MT-150M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLF-MT
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 570mA
Shielding Shielded
DC Resistance (DCR) 448mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.098" W (3.00mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-6785-6,445-6785-2,445-6785-1,VLF302512MT150M
Standard Package 2,000
Win Source Part Number 987648-VLF302512MT-150M
Ultra Librarian 3D Model Ultra Librarian VLF302512MT-150M CAD Model

Description

The VLF302512MT-150M from TDK Corporation is a drum core, wirewound inductor with a shielding package.

  • Inductance: 15 μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 448mOhm Max
  • Current Rating: 800mA
  • Operating Temperature: -40°C to 105°C
  • Package/Case: Nonstandard
  • Mounting Technology: SMD (SMT)
  • MSL Level: 1 (Unlimited)
