Same model may have multiple batches, images only for reference.

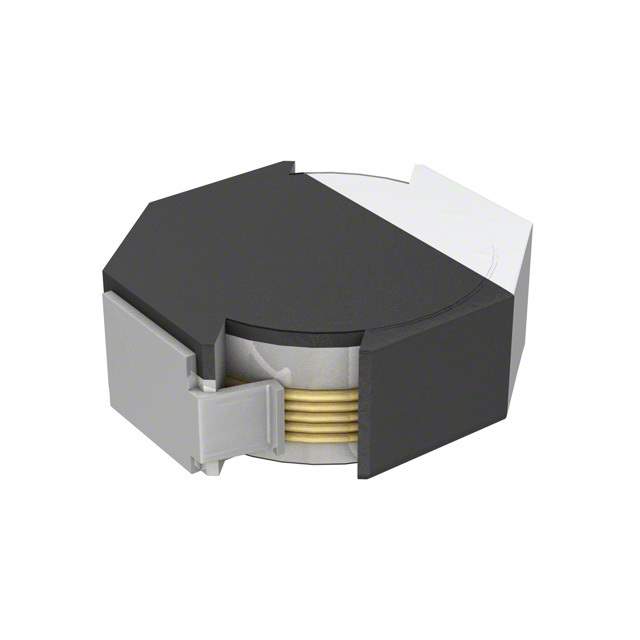

VLF3010ST-2R2M1R1 Real Image
Same model may have multiple batches, images only for reference.

VLF3010ST-2R2M1R1

Part No VLF3010ST-2R2M1R1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.1A 92 MOHM SMD
Datasheet
VLF3010ST-2R2M1R1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.1A
DC Resistance (DCR) 92 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 036309-VLF3010ST-2R2M1R1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLF3010ST-2R2M1R1 CAD Model

Description

The VLF3010ST-2R2M1R1 is a wirewound inductor manufactured by TDK Corporation.

  • Popularity Rating: Medium
  • Supply and Demand Status: Balance
  • Current Rating: 1.1A
  • Inductance: 2.2μH
  • Tolerance: ±20%
  • DC Resistance: 92 mOhm max
  • Height: 0.039" (1.00mm) when seated
  • Material: ferrite
  • Temperature Range: -40°C to 105°C
  • Not for New Designs: True
  • Applications: Power supplies, DC-DC converters, and EMI suppression
