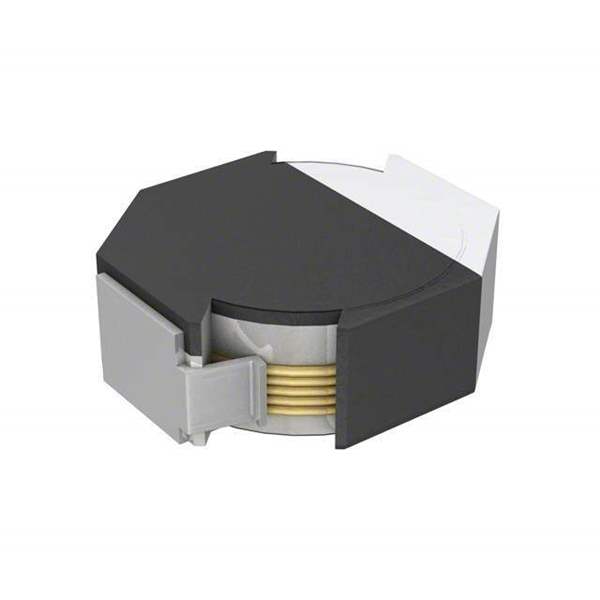

VLF3010AT-2R2M1R0 TDK Corporation
Same model may have multiple batches, images only for reference.

VLF3010AT-2R2M1R0

Part No VLF3010AT-2R2M1R0
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1A 120 MOHM SMD
Datasheet
VLF3010AT-2R2M1R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 1A
Current - Saturation 1A
DC Resistance (DCR) 120 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 036305-VLF3010AT-2R2M1R0
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLF3010AT-2R2M1R0 CAD Model

Description

The TDK Corporation VLF3010AT-2R2M1R0 is a wirewound inductor with a current rating of 1A and an inductance of 2.2μH.

  • Current Rating: 1A
  • Inductance: 2.2μH
  • Height: 0.039 inches (1.00mm) when seated
  • Mounting: Surface mount technology (SMT)
  • Tolerance: ±20%
  • Core Material: ferrite
  • DC Resistance (DCR): 120 mOhm Max
  • Temperature Range: from -40 degrees Celsius to 105 degrees Celsius
  • Type: High popularity product
  • Supply and Demand Status: Limited
