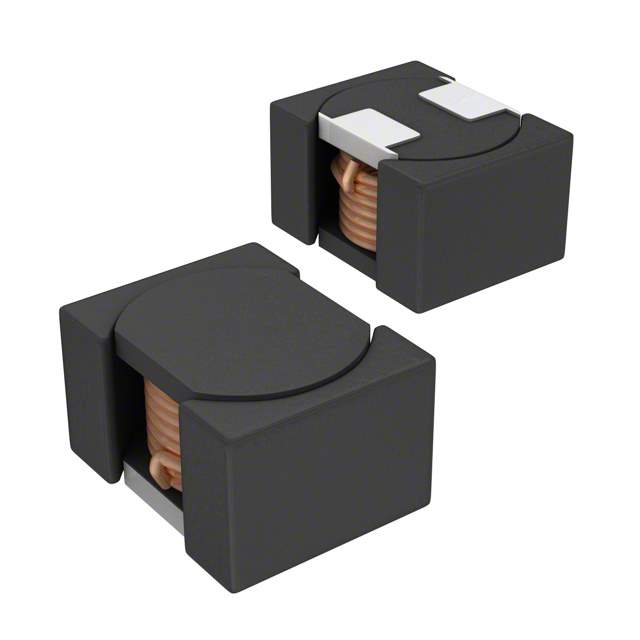

VLF252015MT-R47N Real Image
Same model may have multiple batches, images only for reference.

VLF252015MT-R47N

Part No VLF252015MT-R47N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 470NH 4.03A 16 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 470nH
Tolerance ±30%
Current Rating (Amps) 4.03A
Current - Saturation 1.85A
Shielding Shielded
DC Resistance (DCR) 16mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807288-VLF252015MT-R47N
Ultra Librarian 3D Model Ultra Librarian VLF252015MT-R47N CAD Model

Description

The TDK Corporation VLF252015MT-R47N is a surface-mount wirewound inductor from TDK Corporation.

  • Inductance: 470nH
  • Tolerance: ±30%
  • Shielded: Yes
  • Core Material: Ferrite
  • Current Saturation: 1.85A
  • Maximum DCR: 16mOhm
  • Manufacturer Package: 1008 (2520 Metric)
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Status: Obsolete (end of life)
  • Popularity: Medium
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (unlimited)
  • Current Rating: 4.03A
  • Inductance Frequency Test: 1MHz
