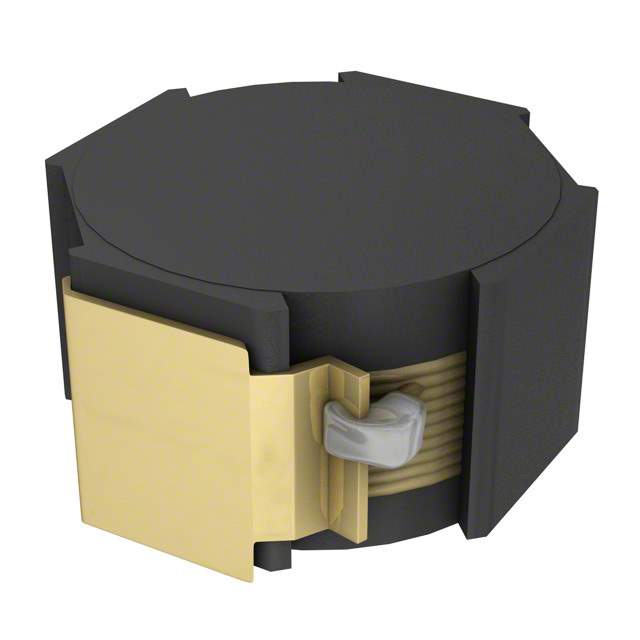

Same model may have multiple batches, images only for reference.

VLF12060T-6R8N7R2

Name: VLF12060T-6R8N7R2
Brand: TDK Corporation
SKU: 696680
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	VLF12060T-6R8N7R2
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded)
Datasheet	VLF12060T-6R8N7R2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Series	VLF
Packaging	Reel - TR
Type	Wirewound
Material - Core	Ferrite
Inductance	6.8μH
Tolerance	±30%
Current Rating	7.2A
Current - Saturation	7.5A
Shielding	Shielded
DC Resistance (DCR)	13.1 mOhm Max
Operating Temperature Range	-40°C ~ 105°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Size	0.472" L x 0.461" W (12.00mm x 11.70mm)
Height - Seated (Maximum)	0.236" (6.00mm)
Win Source Part Number	1279368-VLF12060T-6R8N7R2
Manufacturer Homepage	www.tdk.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	VLF
Introduction Date	May 20, 2002
ECCN	EAR99
Estimated EOL Date	Obsolete
Ultra Librarian 3D Model	Ultra Librarian VLF12060T-6R8N7R2 CAD Model

Alternative Products

Description

The TDK Corporation VLF12060T-6R8N7R2 is a wirewound inductor that belongs to the inductors, coils, and chokes category.

Series: VLF
Shielding: Shielded
Inductance: 6.8μH
Current Rating: 7.2A
Maximum Seated Height: 0.236" (6.00mm)
DC Resistance (DCR): 13.1 mOhm Max
Mounting: Surface Mountable
Package: Non-Standard
Tolerance: ±30%
Material: Ferrite
