Same model may have multiple batches, images only for reference.

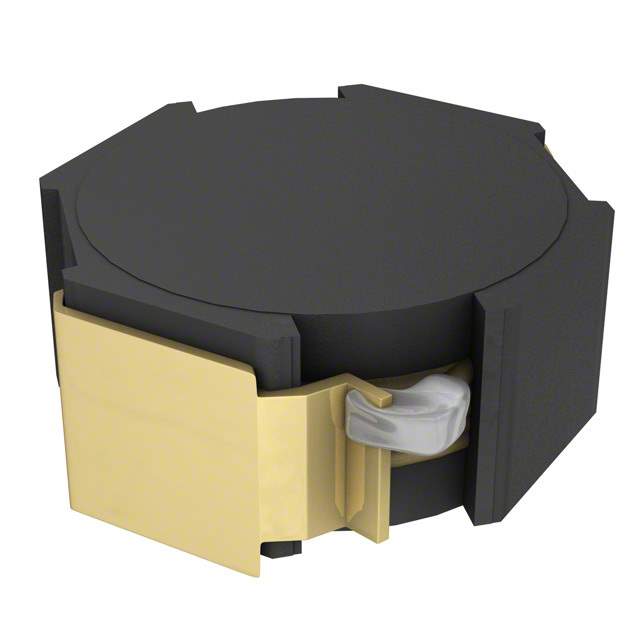

VLF10040T-1R0N9R7 Real Image
Same model may have multiple batches, images only for reference.

VLF10040T-1R0N9R7

Part No VLF10040T-1R0N9R7
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded) | FIXED IND 1UH 9.7A 5.2 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±30%
Current Rating (Amps) 9.7A
Current - Saturation 11.9A
Shielding Shielded
DC Resistance (DCR) 5.2mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.394" L x 0.382" W (10.00mm x 9.70mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1279361-VLF10040T-1R0N9R7
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLF10040T-1R0N9R7 CAD Model

Description

The TDK Corporation wire-wound inductor is a high-quality component used in various electrical appliances.

  • Application: Circuits requiring a balance of supply and demand
  • Type: Shielded
  • Core Material: Ferrite
  • Tolerance: +/- 30%
  • Inductance Frequency-Test: 100kHz
  • Current Rating: 9.7A
  • Applications: Circuits requiring inductors, coils, or chokes
  • Packaging: Reel
  • Height-Seated (Maximum): 0.157" (4.00mm)
