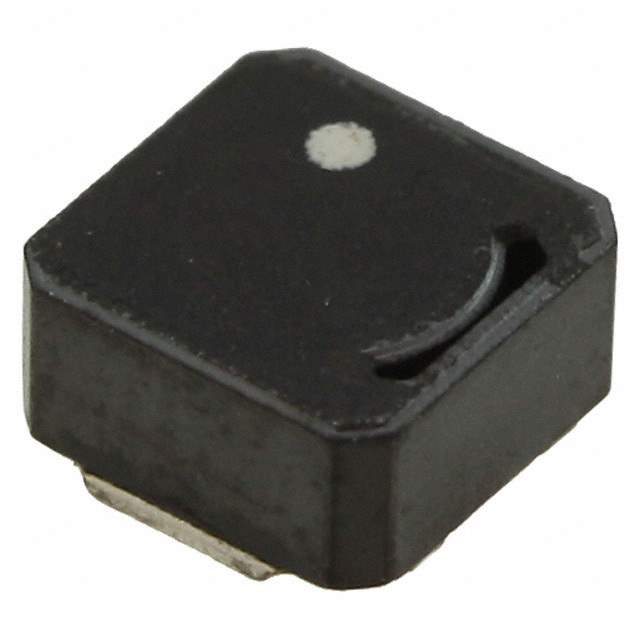

Same model may have multiple batches, images only for reference.

VLCF5028T-471MR14-2

Name: VLCF5028T-471MR14-2
Brand: TDK Corporation
SKU: 696671
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	VLCF5028T-471MR14-2
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	Inductors for Power Circuits Wound Ferrite
Datasheet	VLCF5028T-471MR14-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Series	VLCF
Packaging	Reel - TR
Type	Wirewound
Material - Core	Ferrite
Inductance	470μH
Tolerance	±20%
Current Rating	140mA
Current - Saturation	140mA
Shielding	Shielded
DC Resistance (DCR)	3.12 Ohm Max
Operating Temperature Range	-40°C ~ 105°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Size	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum)	0.110" (2.80mm)
Win Source Part Number	1279359-VLCF5028T-471MR14-2
Manufacturer Homepage	www.tdk.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	VLCF
Introduction Date	May 20, 2002
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2024
Ultra Librarian 3D Model	Ultra Librarian VLCF5028T-471MR14-2 CAD Model

Alternative Products

Description

The TDK Corporation VLCF5028T-471MR14-2 is a wirewound inductor that is ideal for a range of applications.

Inductance: 470μH
Current Rating: 140mA
Tolerance: ±20%
Shielded: Yes
DC Resistance (DCR): 3.12 Ohm Max
Material: Ferrite
Packaging: Reel - TR
Size: 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum): 0.110" (2.80mm)
Operating Temperature Range: -40°C to 105°C
