Same model may have multiple batches, images only for reference.

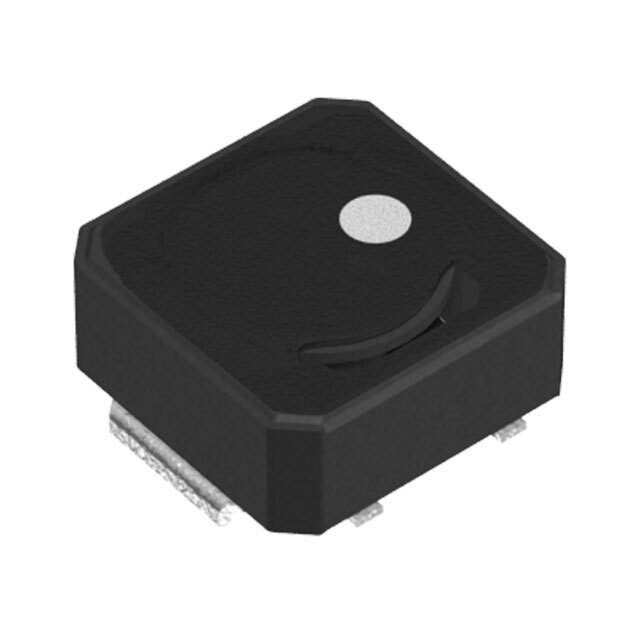

VLCF5020T-220MR58 Real Image
Same model may have multiple batches, images only for reference.

VLCF5020T-220MR58

Part No VLCF5020T-220MR58
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 580MA 373 MOHM
Datasheet
VLCF5020T-220MR58 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 580mA
Current - Saturation 580mA
DC Resistance (DCR) 373 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 054490-VLCF5020T-220MR58
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLCF5020T-220MR58 CAD Model

Description

The TDK Corporation VLCF5020T-220MR58 is a wirewound inductor that is designed for use in electronic circuits.

  • Inductance: 22μH
  • Package: reel - TR
  • Current Rating: 580mA
  • Current Saturation: 580mA
  • DC Resistance: 373 mOhm max
  • Tolerance: ±20%
  • Frequency Self-Resonant: not specified
  • Q at Frequency: not specified
  • Temperature Range: -40°C to 105°C
  • Supply and Demand Status: balance
