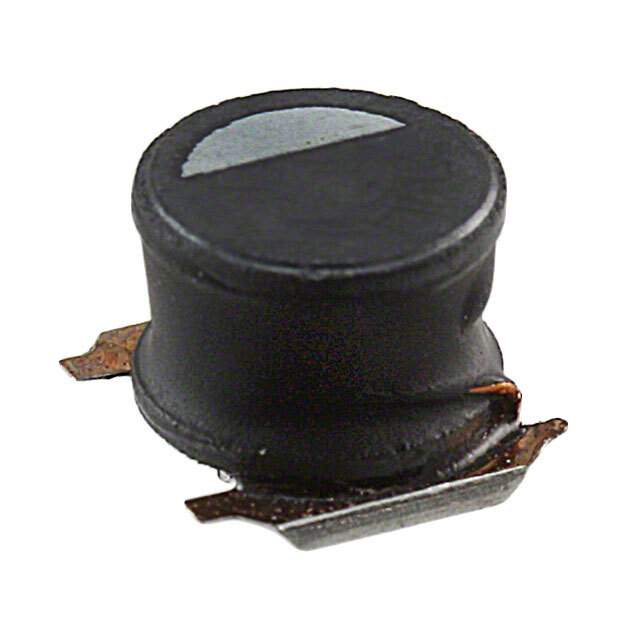

VLC6045T-470M Real Image
Same model may have multiple batches, images only for reference.

VLC6045T-470M

Part No VLC6045T-470M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 47UH 1.2A 260 MOHM SMD / Inductor Power Shielded Wirewound 47uH 20% 100KHz 1.1A 0.26Ohm DCR
Datasheet
VLC6045T-470M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLC
Packaging Reel package
Part Status Obsolete(EOL)
Type Wirewound
Inductance 47μH
Tolerance ±20%
Current Rating 1.2A
Current - Saturation 1.2A
Shielding Shielded
DC Resistance (DCR) 260 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 799096-VLC6045T-470M
Popularity Medium
Supply and Demand Status Limited
Family Name VLC
Introduction Date May 20, 2002
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VLC6045T-470M CAD Model

Description

The TDK Corporation 799096-VLC6045T-470M is a wirewound inductor manufactured by TDK Corporation.

  • Inductance: 47μH
  • Maximum Current Rating: 1.2A
  • Mounting Type: SMD
  • Package: Nonstandard
  • Tolerance: ±20%
  • DC Resistance (DCR): 260 mOhm Max
  • Shielding: Shielded
  • Height: 0.177" (4.50mm)
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Category: Inductor, Coil, Choke
  • Alternative Parts: LQH6PPN470M43L, MSS7341-473MLD
