Same model may have multiple batches, images only for reference.

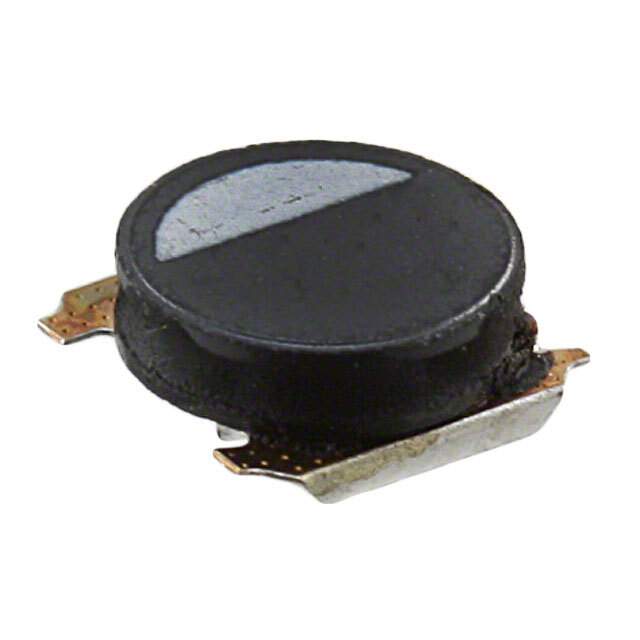

VLC5020T-R47N Real Image
Same model may have multiple batches, images only for reference.

VLC5020T-R47N

Part No VLC5020T-R47N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded) | FIXED IND 470NH 5.6A 18 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Inductance 470nH
Tolerance ±30%
Current Rating (Amps) 5.6A
Current - Saturation 5.6A
Shielding Shielded
DC Resistance (DCR) 18mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1279349-VLC5020T-R47N
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLC5020T-R47N CAD Model

Description

The TDK Corporation electronic component is a high-quality product used in various applications, including inductors, coils, and chokes.

  • Supply and Demand: It has a limited supply and demand status, but it is a popular choice amongst users due to its medium level of popularity.
  • Manufacturer: TDK.
  • Website: www.tdk.com.
  • Win Source Part Number: 1279349-VLC5020T-R47N.
  • Type: Wirewound.
  • Tolerance: ±30%.
  • Inductance: 470nH.
  • DC Resistance: 18mOhm max.
  • Shielding: Shielded.
  • Current Saturation: 5.6A.
  • Operating Temperature: -40°C to 105°C.
