Same model may have multiple batches, images only for reference.

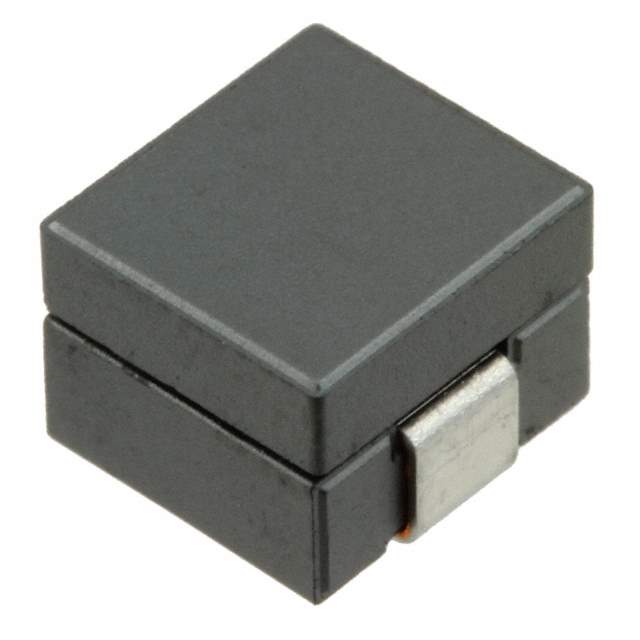

VLB7050HT-R09M Real Image
Same model may have multiple batches, images only for reference.

VLB7050HT-R09M

Part No VLB7050HT-R09M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 90NH 36A 0.27 MOHM SMD
Datasheet
VLB7050HT-R09M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 90nH
Tolerance ±20%
Current Rating 36A
Current - Saturation 64A
DC Resistance (DCR) 0.27 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 1117087-VLB7050HT-R09M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLB7050HT-R09M CAD Model

Description

The TDK Corporation inductor is a wirewound type with a current rating of 36A and an inductance of 90nH.

  • Current Rating: 36A
  • Inductance: 90nH
  • Core Material: Ferrite
  • Tolerance: ±20%
  • Current Saturation: 64A
  • DC Resistance (DCR): 0.27 mOhm Max
  • Operating Temperature Range: -40°C to 125°C
  • Mounting: SMD (SMT)
  • Packaging: Reel
  • Height-Seated (max): 0.197" (5.00mm)
