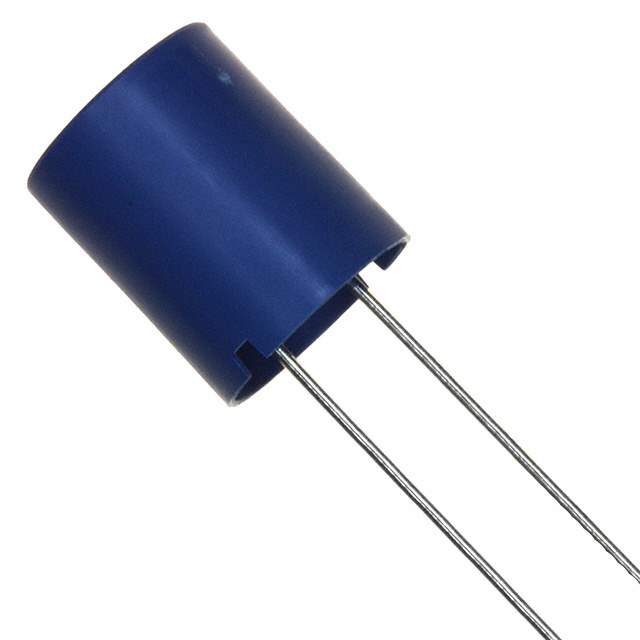

TSL1315RA-222JR55-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-222JR55-PF

Part No TSL1315RA-222JR55-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2MH 550MA 2 OHM TH
Datasheet
TSL1315RA-222JR55-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 2.2mH
Tolerance ±5%
Current Rating 550mA
Current - Saturation 830mA
DC Resistance (DCR) 2 Ohm Max
Q @ Freq 40 @ 252kHz
Frequency - Self Resonant 700kHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 035329-TSL1315RA-222JR55-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-222JR55-PF CAD Model

Description

The TDK Corporation is an obsolete (EOL) electronic component that comes with a packaging of AMMO PACKAGE. It has a current rating of 550mA and an inductance of 2.2mH.

  • Status: obsolete (EOL)
  • Packaging: AMMO PACKAGE
  • Current Rating: 550mA
  • Inductance: 2.2mH
  • Height: 0.669" (17.00mm)
  • Mounting: through a hole
  • Tolerance: ±5%
  • Current - Saturation: 830mA
  • Q @ Freq: 40 @ 252kHz
  • Frequency - Self-Resonant: 700kHz
  • Frequency - Test: 1kHz
  • Category: Inductors, Coils, Chokes
  • DC Resistance (DCR): 2 Ohm Max
  • Temperature Range - Operating: -20°C to 85°C
  • Supply and Demand Status: balanced
