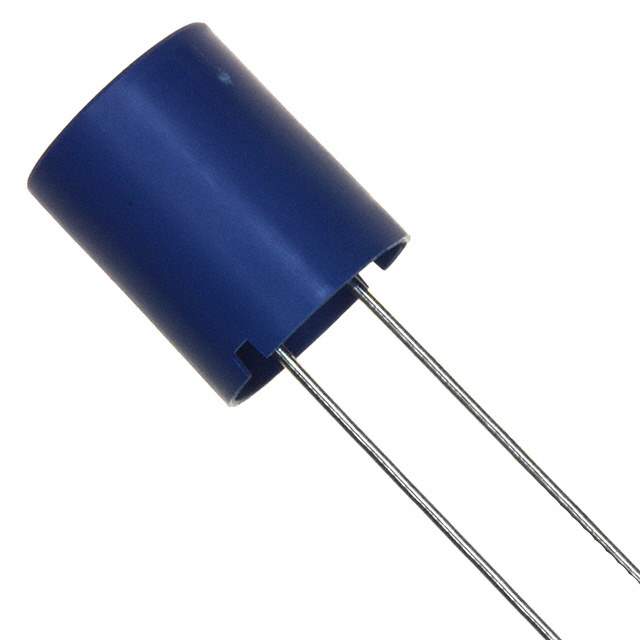

TSL1315RA-220K4R2-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-220K4R2-PF

Part No TSL1315RA-220K4R2-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 4.2A 35 MOHM TH
Datasheet
TSL1315RA-220K4R2-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 22μH
Tolerance ±10%
Current Rating 4.2A
Current - Saturation 8.2A
DC Resistance (DCR) 35 mOhm Max
Q @ Freq 80 @ 2.52MHz
Frequency - Self Resonant 7.6MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 122627-TSL1315RA-220K4R2-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-220K4R2-PF CAD Model

Description

The TSL1315RA-220K4R2-PF from TDK Corporation is an inductor, coil, choke component. The device has an inductance of 22μH and a current rating of 4.2A.

  • Inductance: 22μH
  • Current Rating: 4.2A
  • Mounting: through-hole
  • Tolerance: ±10%
  • Applications: power supplies, DC-DC converters, and filters
  • Category: inductors, coils, chokes
  • Status: obsolete (EOL)
  • Supply and Demand Status: balanced
