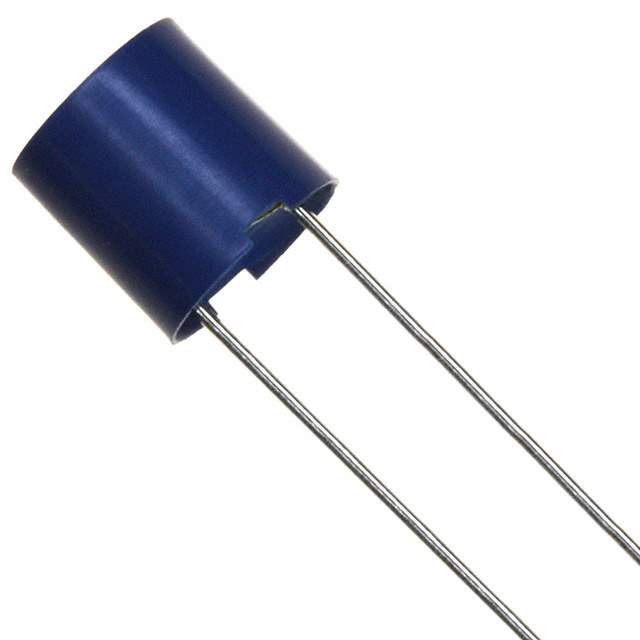

TSL0808RA-102KR26-PF TDK Corporation TSL0808RA-102KR26-PF Real Image
Same model may have multiple batches, images only for reference.
TSL0808RA-102KR26-PF TDK Corporation TSL0808RA-102KR26-PF Real Image
TSL0808RA-102KR26-PF TDK Corporation TSL0808RA-102KR26-PF Real Image
Same model may have multiple batches, images only for reference.

TSL0808RA-102KR26-PF

Part No TSL0808RA-102KR26-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1MH 260MA 2.2 OHM TH
Datasheet
TSL0808RA-102KR26-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 1mH
Tolerance ±10%
Current Rating 260mA
Current - Saturation 260mA
DC Resistance (DCR) 2.2 Ohm Max
Q @ Freq 30 @ 252kHz
Frequency - Self Resonant 1.3MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.346" (8.80mm)
Win Source Part Number 035320-TSL0808RA-102KR26-PF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TSL0808
Introduction Date August 06, 1999
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian TSL0808RA-102KR26-PF CAD Model

Description

The TDK Corporation inductor is a high popularity product that has a Win Source Part Number of 035320-TSL0808RA-102KR26-PF.

  • Current Rating: 260mA
  • Inductance: 1mH
  • Mounting: Through hole
  • Tolerance: ±10%
  • Product Family: TSL0808
  • Category: Fixed inductors
  • Status: Obsolete (EOL)
  • Temperature Range: -20°C to 85°C
  • DC Resistance (DCR): 2.2 Ohm Max
  • Estimated EOL Date: Obsolete
