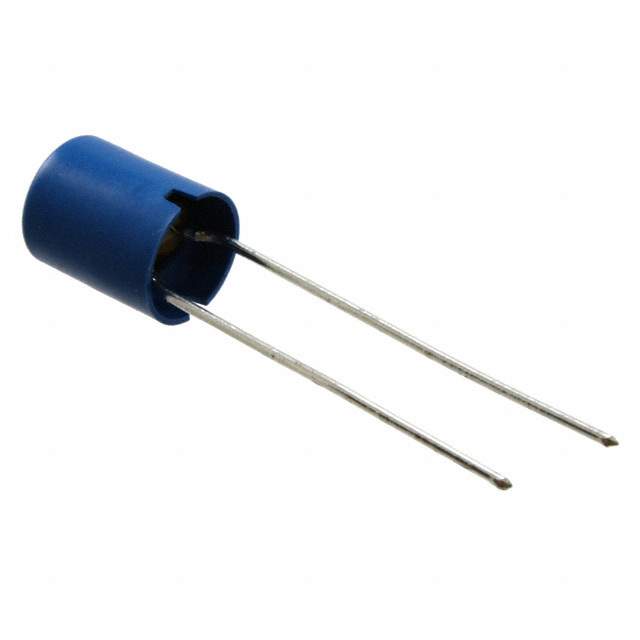

TSL0709RA-470KR94-PF Real Image
Same model may have multiple batches, images only for reference.

TSL0709RA-470KR94-PF

Part No TSL0709RA-470KR94-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 47UH 940MA 170 MOHM TH
Datasheet
TSL0709RA-470KR94-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 47μH
Tolerance ±10%
Current Rating 940mA
Current - Saturation 960mA
DC Resistance (DCR) 170 mOhm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 7.6MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.378" (9.60mm)
Win Source Part Number 035317-TSL0709RA-470KR94-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL0709RA-470KR94-PF CAD Model

Description

TDK Corporation is the manufacturer of this product with Win Source Part Number 035317-TSL0709RA-470KR94-PF.

  • Product: Inductor, coil, choke
  • Current Rating: 940mA
  • Inductance: 47μH
  • Supply and Demand Status: Balanced
  • Packaging: AMMO PACKAGE
  • Mounting: Through Hole
  • Status: Obsolete (EOL)
  • Temperature Range: -20°C to 85°C
