Same model may have multiple batches, images only for reference.

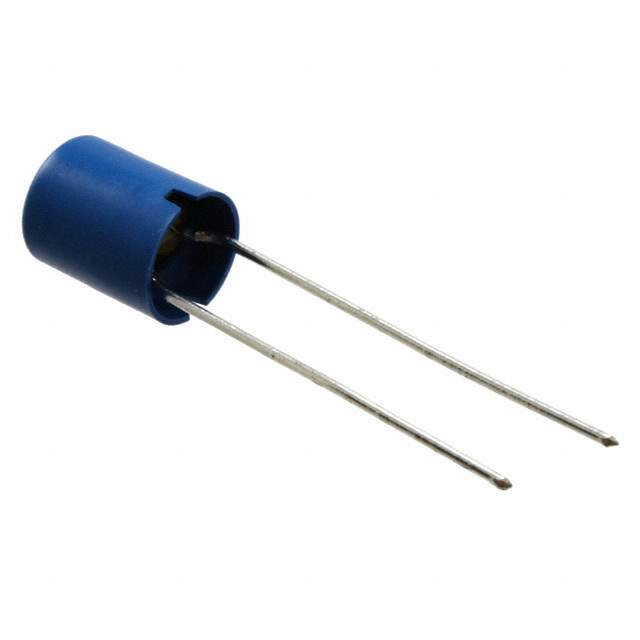

TSL0709RA-3R3M2R9-PF Real Image
Same model may have multiple batches, images only for reference.

TSL0709RA-3R3M2R9-PF

Part No TSL0709RA-3R3M2R9-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 2.9A 18 MOHM TH
Datasheet
TSL0709RA-3R3M2R9-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 3.3μH
Tolerance ±20%
Current Rating 2.9A
Current - Saturation 3.6A
DC Resistance (DCR) 18 mOhm Max
Q @ Freq 10 @ 7.96MHz
Frequency - Self Resonant 36MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.378" (9.60mm)
Win Source Part Number 054473-TSL0709RA-3R3M2R9-PF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL0709RA-3R3M2R9-PF CAD Model

Description

The TSL0709RA-3R3M2R9-PF is a through-hole inductor manufactured by TDK Corporation.

  • Description: Designed to provide high inductance, low DC resistance, and high reliability.
  • Popularity: High
  • Supply and Demand: Balanced
  • Applications: Various applications.
