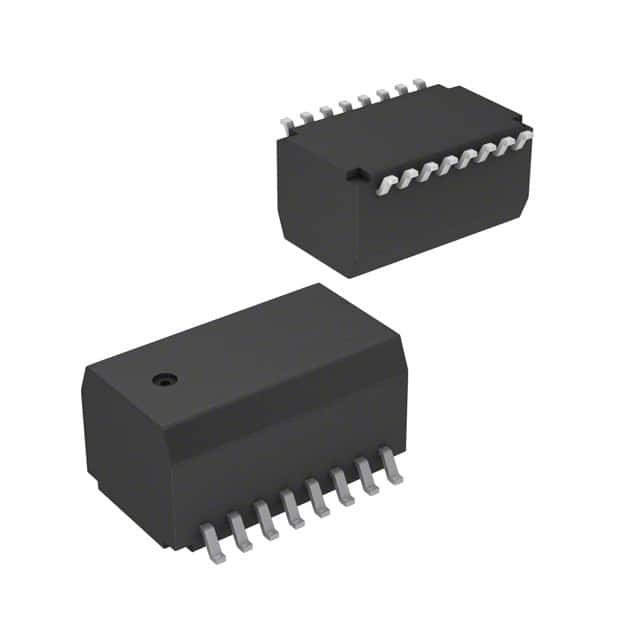

TLA-3T107LF

Part No TLA-3T107LF
Manufacturer TDK Corporation
Catalog Pulse Transformers
Description XFRMR LAN 1:1.41TR 130UH 16SOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr TDK Corporation
Series TLA
Package Tray
Product Status Active
Transformer Type LAN
Inductance 130µH
Mounting Type Surface Mount
Size / Dimension 0.457" L x 0.268" W (11.60mm x 6.80mm)
Height - Seated (Max) 0.232" (5.90mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 10 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 936652-TLA-3T107LF
Ultra Librarian 3D Model Ultra Librarian TLA-3T107LF CAD Model

Description

The TLA series pulse transformer is a high-quality electronic component designed for use in transformer applications.

  • Manufacturer: TDK Corporation
  • Product Name: TLA series
  • Type: Pulse transformer
  • Inductance: 130µH
  • Size: 0.457" L x 0.268" W (11.60mm x 6.80mm)
  • Application: LAN
  • Mounting Type: Surface mountable
  • Height: 0.232" (5.90mm)
  • Package: Tray
  • Operating Temperature: 0°C to 70°C
