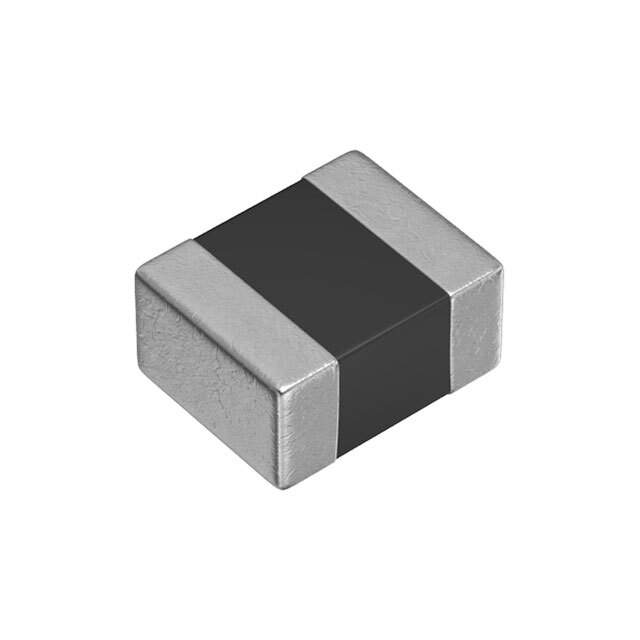

TFM252012ALVA1R5MTAA

Part No TFM252012ALVA1R5MTAA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.5UH 3.1A 60MOHM SMD / 1.5 µH Shielded Thin Film Inductor 3.1 A 60mOhm Max 1008 (2520 Metric)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series TFM-ALVA
Package Tape & Reel
Type Thin Film
Material - Core Metal
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 3.1 A
Current - Saturation (Isat) 3.3A
Shielding Shielded
DC Resistance (DCR) 60mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-TFM252012ALVA1R5MTAACT,445-TFM252012ALVA1R5MTAATR,445-TFM252012ALVA1R5MTAADKR
Standard Package 3,000
Win Source Part Number 1189152-TFM252012ALVA1R5MTAA
Ultra Librarian 3D Model Ultra Librarian TFM252012ALVA1R5MTAA CAD Model

Description

The TFM252012ALVA1R5MTAA is a thin film fixed inductor from TDK Corporation.

  • Series: TFM-ALVA
  • Mounting Style: Surface Mount
  • Tolerance: ±20%
  • Core Material: Metal
  • Temperature Range: -55°C to 150°C
  • Current Rating: 3.1A
  • Standard Package: 3,000
