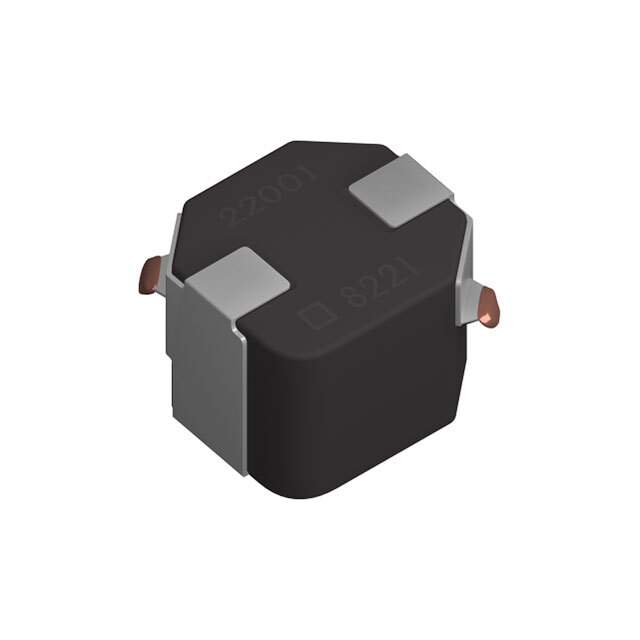

SPM7054VT-220M-D Real Image
Same model may have multiple batches, images only for reference.

SPM7054VT-220M-D

Part No SPM7054VT-220M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-VT-D
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 3.9 A
Current - Saturation (Isat) 4.2A
Shielding Shielded
DC Resistance (DCR) 71.9mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.295" L x 0.276" W (7.50mm x 7.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Other Names 445-180961-1,445-180961-2,445-180961-6
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272503-SPM7054VT-220M-D
Ultra Librarian 3D Model Ultra Librarian SPM7054VT-220M-D CAD Model

Description

The SPM-VT-D SPM7054VT-220M-D Fixed Inductor from TDK Corporation is a drum core, wirewound type of inductor that has a shielded feature.

  • Series: SPM-VT-D
  • Type: Drum Core, Wirewound, Shielded
  • Inductance: 22µH
  • Tolerance: ±20%
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Core Material: Metal Composite
  • DC Resistance (DCR): 71.9mOhm
  • Current Rating: 3.9 A
  • Dimension: 0.295" L x 0.276" W (7.50mm x 7.00mm)
  • Temperature Range: -55°C to 155°C
  • RoHS: Non-Compliant
