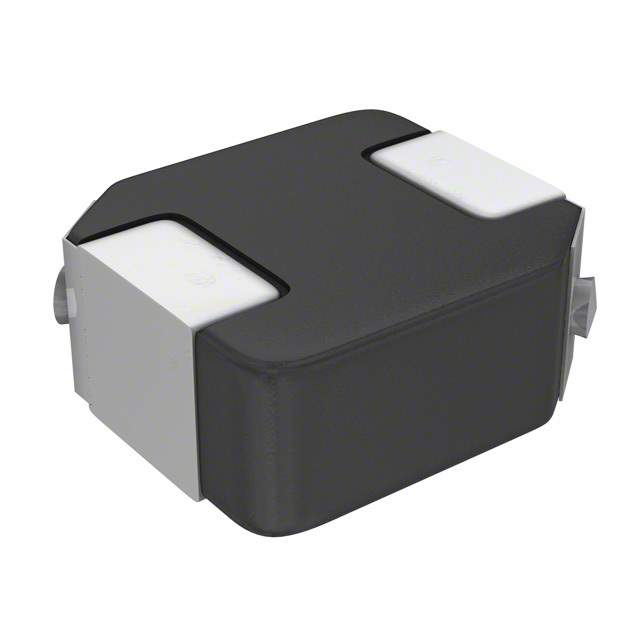

SPM6530T-4R7M Real Image
Same model may have multiple batches, images only for reference.

SPM6530T-4R7M

Part No SPM6530T-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 4.7uH 20% 100KHz Metal 5.6A 0.0394Ohm DCR T/R / FIXED IND 4.7UH 5.6A 39.4 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Metal
Inductance 4.7μH
Tolerance ±20%
Current Rating 5.6A
Current - Saturation 6.2A
DC Resistance (DCR) 39.4 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 030764-SPM6530T-4R7M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name SPM
Introduction Date May 20, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SPM6530T-4R7M CAD Model

Description

The TDK Corporation SPM6530T-4R7M is a wirewound type inductor that has a current rating of 5.6A and an inductance of 4.7μH.

  • Current Rating: 5.6A
  • Inductance: 4.7μH
  • Tolerance: ±20%
  • Maximum Height: 0.118" (3.00mm)
  • Core Material: Metal
  • Current Saturation: 6.2A
  • DC Resistance (DCR): 39.4 mOhm Max
  • Temperature Range: -40°C to 125°C
