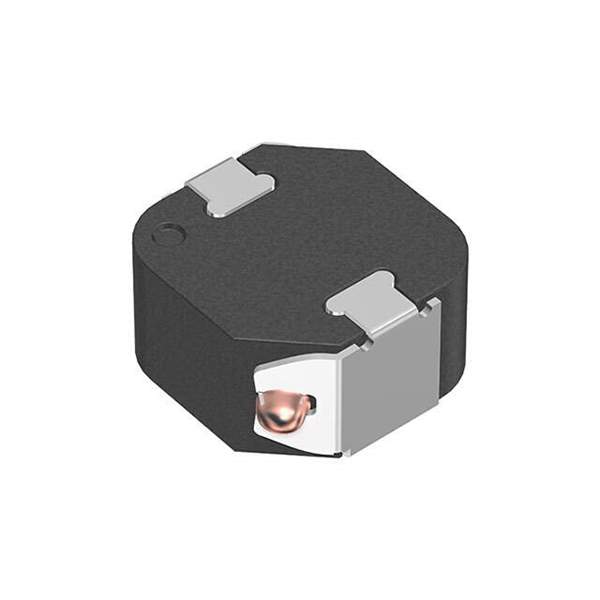

SPM5030T-4R7M Real Image
Same model may have multiple batches, images only for reference.

SPM5030T-4R7M

Part No SPM5030T-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 4.7A 49.5MOHM SM / 4.7 µH Shielded Drum Core, Wirewound Inductor 4.7 A 49.5mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM5030
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 4.7 A
Current - Saturation (Isat) 3A
Shielding Shielded
DC Resistance (DCR) 49.5mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.205" L x 0.197" W (5.20mm x 5.00mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-180359-6,445-180359-1,445-180359-2
Standard Package 500
Win Source Part Number 1095659-SPM5030T-4R7M
Ultra Librarian 3D Model Ultra Librarian SPM5030T-4R7M CAD Model

Description

The SPM5030T-4R7M is a fixed inductor. TDK Corporation manufactures this component with an inductance of 4.7 µH.

  • Type: drum core, wirewound
  • Package/Case: nonstandard
  • Packaging: tape and reel
  • Shielded: Yes
  • Tolerance: ±20%
  • Core Material: metal
  • DC Resistance (DCR): 49.5mOhm Max
  • Height: 0.118" (3.00mm)
  • Dimension: 0.205" L x 0.197" W (5.20mm x 5.00mm)
  • Current Rating: 4.7 A
  • Current - Saturation (Isat): 3 A
  • Temperature Range: -40°C to 125°C
