Same model may have multiple batches, images only for reference.

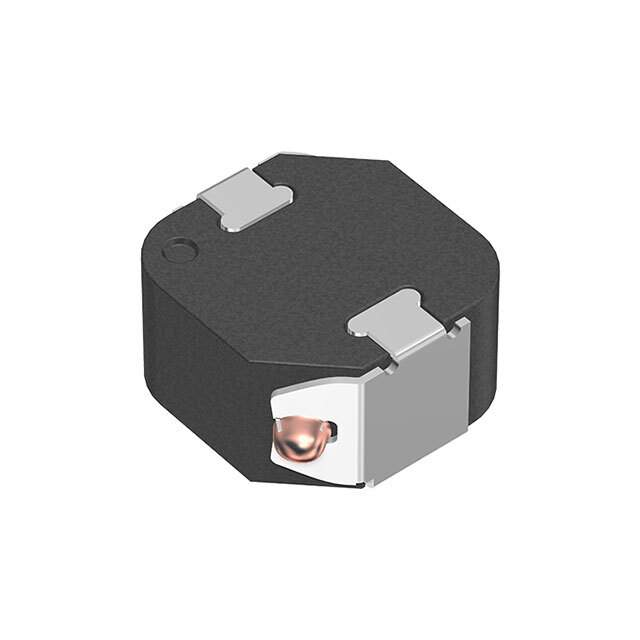

SPM5030T-3R3M Real Image
Same model may have multiple batches, images only for reference.

SPM5030T-3R3M

Part No SPM5030T-3R3M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 6A 29.48MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 6 A 29.48mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM5030
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 6 A
Current - Saturation (Isat) 4.3A
Shielding Shielded
DC Resistance (DCR) 29.48mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.205" L x 0.197" W (5.20mm x 5.00mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-180358-6,445-180358-1,445-180358-2
Standard Package 500
Win Source Part Number 984720-SPM5030T-3R3M
Ultra Librarian 3D Model Ultra Librarian SPM5030T-3R3M CAD Model

Description

The TDK Corporation SPT0305A-8R2K-PF is an OEM part that is designed to provide high performance in a compact form factor.

  • Inductance: 3.3 µH
  • Tolerance: ±20%
  • Type: Drum core, wirewound
  • Shielding: Shielded
  • Mounting: Surface-mount device
  • Package/Case: Nonstandard
  • Maximum DC Resistance: 29.48mOhm
  • Current Rating: 6A
  • Temperature Range: -40°C to 125°C
