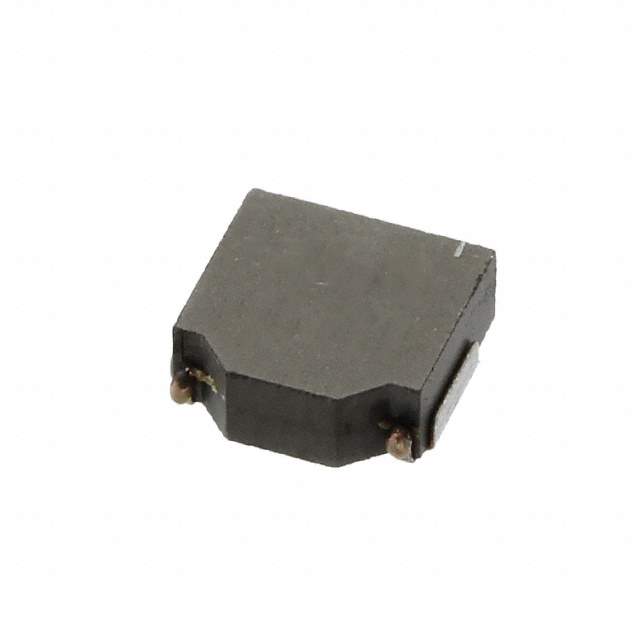

SPM5020T-1R5M Real Image
Same model may have multiple batches, images only for reference.

SPM5020T-1R5M

Part No SPM5020T-1R5M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM
Product Status Last Time Buy
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 7.8A
Shielding Shielded
DC Resistance (DCR) 33.4mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.213" L x 0.201" W (5.40mm x 5.10mm)
Height - Seated (Max) 0.079" (2.00mm)
Other Names 445-172382-6,445-172382-1,445-172382-2
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272657-SPM5020T-1R5M
Ultra Librarian 3D Model Ultra Librarian SPM5020T-1R5M CAD Model

Description

The TDK Corporation Fixed Inductors are a high-quality solution for any electronic circuit.

  • Core Material: Metal
  • Current Rating: 5A
  • Design: Designed to reduce electromagnetic interference in electronic circuits
  • Ideal for: SMD (SMT) mounting
  • Tolerance: ±20%
  • Benefit: A reliable and efficient choice for any electronic circuit
