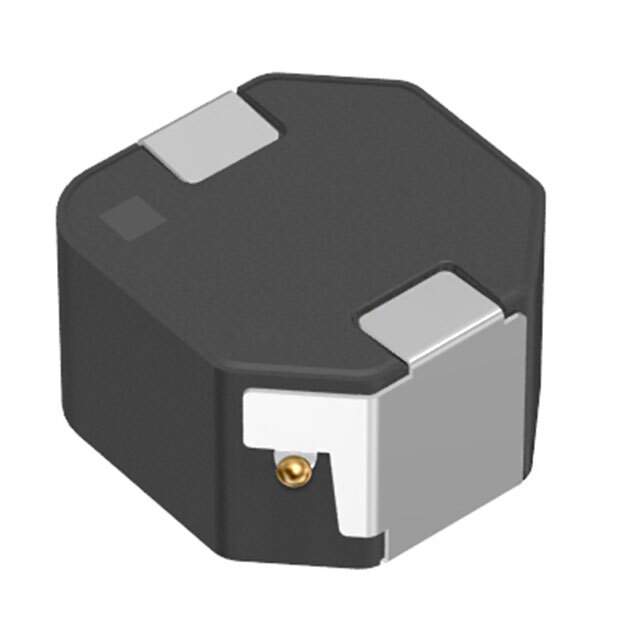

SPM10065VT-220M-D Real Image
Same model may have multiple batches, images only for reference.

SPM10065VT-220M-D

Part No SPM10065VT-220M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-VT-D
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 5.4 A
Current - Saturation (Isat) 7.8A
Shielding Shielded
DC Resistance (DCR) 43.3mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.413" L x 0.394" W (10.50mm x 10.00mm)
Height - Seated (Max) 0.256" (6.50mm)
Other Names 445-SPM10065VT-220M-DTR,445-SPM10065VT-220M-DCT,445-SPM10065VT-220M-DDKR
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272518-SPM10065VT-220M-D
Ultra Librarian 3D Model Ultra Librarian SPM10065VT-220M-D CAD Model

Description

The 1272518-SPM10065VT-220M-D from TDK Corporation is a drum core, wirewound type inductor with a shielding feature, belonging to the SPM-VT-D series.

  • Series: SPM-VT-D
  • Type: Drum Core, Wirewound, Shielded
  • Inductance: 22 µH
  • Tolerance: ±20%
  • Temperature Range: -55°C to 155°C
  • DC Resistance (DCR): 43.3mOhm
  • Current Rating: 5.4 A
  • Current Saturation (Isat): 7.8A
  • Package: Nonstandard
  • Standard Package: 500 pieces
  • ECCN: EAR99
  • Inductance Frequency Test: 100 kHz
  • HTSUS Code: 8504.50.8000
  • Part Numbers: 445-SPM10065VT-220M-DTR, 445-SPM10065VT-220M-DCT, and 445-SPM10065VT-220M-DDKR
