Same model may have multiple batches, images only for reference.

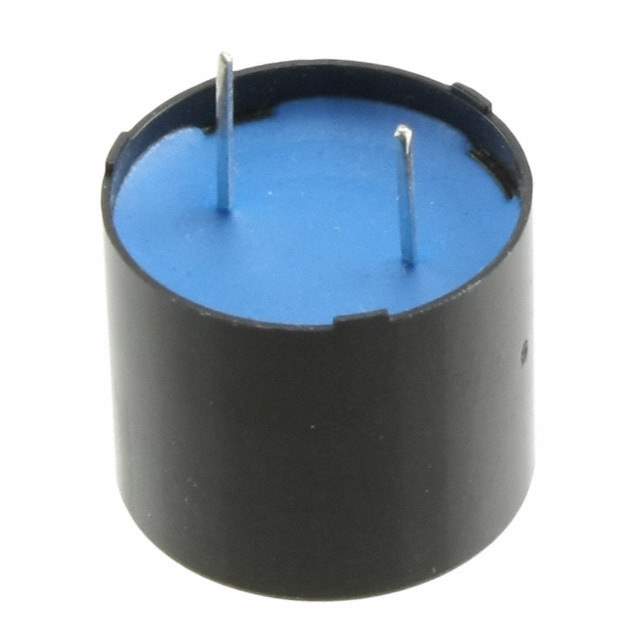

SD1614T5-A1 Real Image
Same model may have multiple batches, images only for reference.

SD1614T5-A1

Part No SD1614T5-A1
Manufacturer TDK Corporation
Catalog Alarms, Buzzers, and Sirens
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr TDK Corporation
Series SD
Package Bulk
Input Type Zero-Peak Signal
Voltage - Rated 5 V
Voltage Range 3 ~ 6V
Frequency 2.048kHz
Technology Magnetic
Sound Pressure Level (SPL) 85dB @ 5V, 10cm
Current - Supply 80mA
Port Location Top
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Panel Mount, Flange
Termination PC Pins
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Other Names 445-175286
Standard Package 480
MSL Level Not Applicable
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1314326-SD1614T5-A1
Ultra Librarian 3D Model Ultra Librarian SD1614T5-A1 CAD Model

Description

The SD1614T5-A1 is an audio product in the alarms, buzzers, and sirens category. It is a part of the SD series and has a termination of PC pins.

  • Manufacturer: TDK Corporation
  • Series: SD
  • Termination: PC Pins
  • Package: Bulk
  • Height (Seated): 0.551 inches
  • Standard Package: 480
  • Voltage Rating: 5 volts
  • Technology: Magnetic
  • Frequency: 2.048kHz
  • Input Type: Zero-Peak Signal
  • Current Supply: 80mA
  • Voltage Range: 3 to 6 volts
  • Port Location: Top
  • Driver Circuitry: Not Specified
  • Operating Mode: Not Specified
  • Duration: Not Mentioned
  • Mounting Type: Panel Mount with Flange
  • Operating Temperature: -40°C to 85°C
  • Dimension: 0.630 inches in diameter or 16.00mm
  • Sound Pressure Level (SPL): 85dB @ 5 volts, 10cm
  • Win Source Part Number: 1314326-SD1614T5-A1
