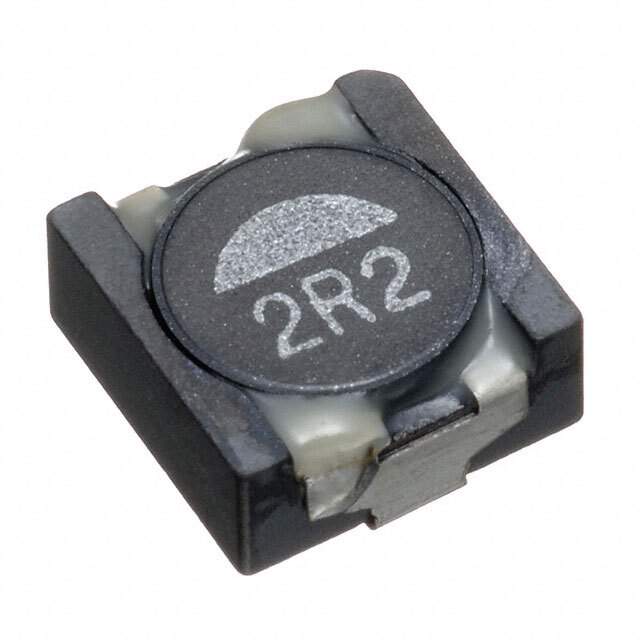

Same model may have multiple batches, images only for reference.

RLF7030T-3R3M4R1-T

Name: RLF7030T-3R3M4R1-T
Brand: TDK Corporation
SKU: 975015
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

Part No	RLF7030T-3R3M4R1-T
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 4.1A 20.88 MOHM / 3.3 µH Shielded Drum Core, Wirewound Inductor 4.1 A 20.88mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	TDK Corporation
Series	RLF-T
Package	Tape & Reel
Product Status	Obsolete
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	3.3 µH
Tolerance	±20%
Current Rating (Amps)	4.1 A
Current - Saturation (Isat)	4.4A
Shielding	Shielded
DC Resistance (DCR)	20.88mOhm Max
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.287" L x 0.268" W (7.30mm x 6.80mm)
Height - Seated (Max)	0.126" (3.20mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	RLF7030T-3R3M4R1-T-ND,445-16650-6,445-16650-2,445-16650-1
Standard Package	1,000
Win Source Part Number	975015-RLF7030T-3R3M4R1-T
Ultra Librarian 3D Model	Ultra Librarian RLF7030T-3R3M4R1-T CAD Model

Alternative Products

Description

The TDK Corporation RLF-T Drum Core Wirewound Inductor is a shielded inductor with a 3.3 μH inductance and a tolerance of ±20%.

Inductance: 3.3 μH
Tolerance: ±20%
DC Resistance: 20.88mOhm max
Current Rating: 4.1A
Mounting: SMD
Seated Height: 0.126" (3.20mm)
Temperature Range: -40°C to 125°C
AEC-Q200 Rated: Yes
Application: Automotive
Dimensions: 0.287" L x 0.268" W (7.30mm x 6.80mm)
