Same model may have multiple batches, images only for reference.

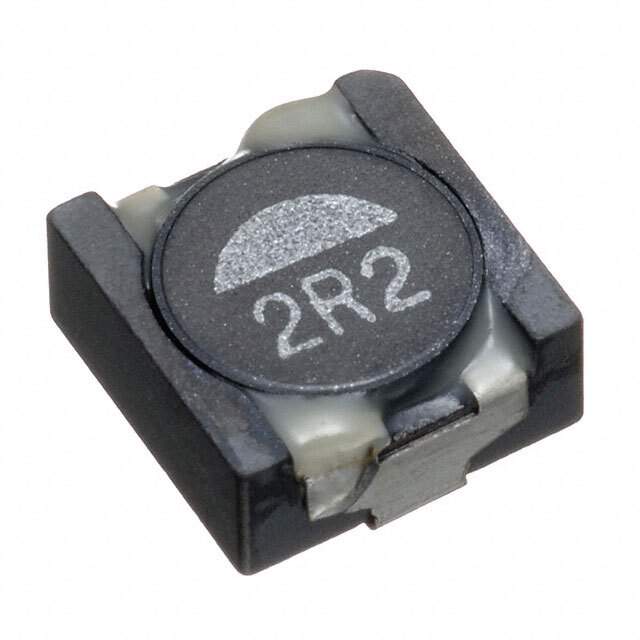

RLF7030T-2R2M5R4 Real Image
Same model may have multiple batches, images only for reference.

RLF7030T-2R2M5R4

Part No RLF7030T-2R2M5R4
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 5.4A 10 MOHM SMD
Datasheet
RLF7030T-2R2M5R4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 5.4A
Current - Saturation 5.5A
DC Resistance (DCR) 12 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.126" (3.20mm)
Win Source Part Number 027439-RLF7030T-2R2M5R4
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial, Avionics, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian RLF7030T-2R2M5R4 CAD Model

Description

The TDK Corporation 027439-RLF7030T-2R2M5R4 is a wirewound inductor with a ferrite core.

  • Mounting Type: SMD (SMT)
  • Current Rating: 5.4A
  • Inductance: 2.2μH
  • Tolerance: ±20%
  • DC Resistance: 12 mOhm Max
  • Temperature Range: -40°C to 125°C
  • Suitable Applications: power management, industrial, avionics, and consumer electronics applications
