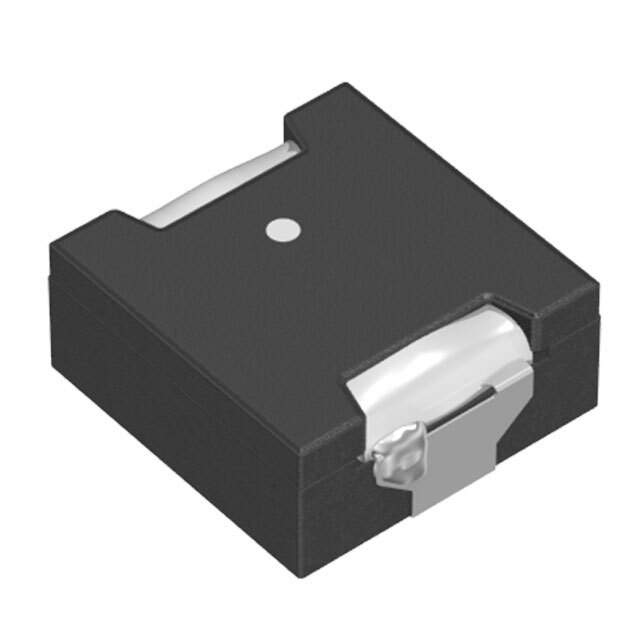

RLF12560T-1R9N120 Real Image
Same model may have multiple batches, images only for reference.

RLF12560T-1R9N120

Part No RLF12560T-1R9N120
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.9UH 12.7A 3.6 MOHM
Datasheet
RLF12560T-1R9N120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 1.9μH
Tolerance ±30%
Current Rating 12.7A
Current - Saturation 15.6A
DC Resistance (DCR) 3.6 mOhm
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.185" (4.70mm)
Win Source Part Number 027433-RLF12560T-1R9N120
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RLF12560T-1R9N120 CAD Model

Description

The RLF12560T-1R9N120 is a wirewound inductor with an inductance of 1.9μH and a current rating of 12.7A.

  • Inductance: 1.9μH
  • Current Rating: 12.7A
  • Core: Ferrite
  • Tolerance: ±30%
  • Operating Temperature: -40°C to 105°C
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Risk: High risk of fake products in the open market
