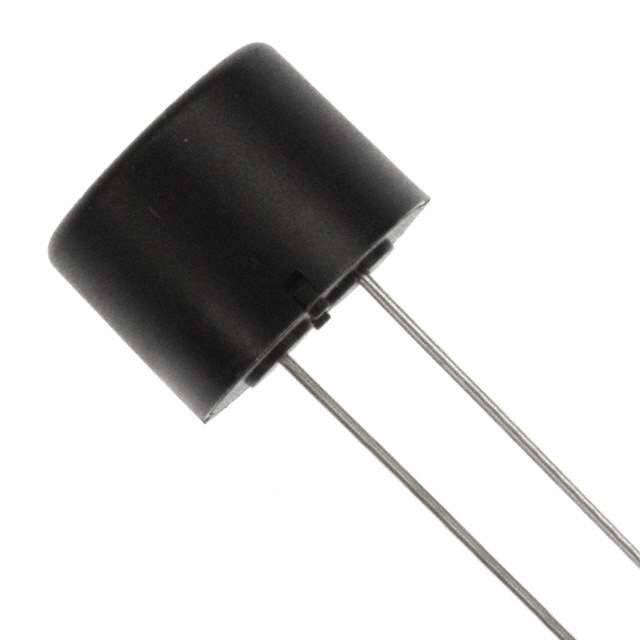

PS1420P02CT Real Image
Same model may have multiple batches, images only for reference.

PS1420P02CT

Part No PS1420P02CT
Manufacturer TDK Corporation
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO TRANSDUCER 30V TH
Datasheet
PS1420P02CT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Active
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage Rating 5V
Voltage Range 30V (Max)
Frequency 2kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 70dB @ 5V, 10cm
Port Location Top
Temperature Range - Operating -10°C to 70°C
Mounting Through Hole
Termination PC Pins
Height - Seated (Max) 0.500" (12.70mm)
Win Source Part Number 106923-PS1420P02CT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS1420P02CT CAD Model

Description

The TDK Corporation PS1420P02CT is a piezo audio transducer with a frequency of 2kHz and a voltage rating of 5V.

  • Frequency: 2kHz
  • Voltage Rating: 5V
  • Sound Pressure Level: 70dB @ 5V, 10cm
  • Operating Mode: Single Tone
  • Suitable for: Audio Products
  • Port Location: Top
  • Package Type: AMMO PACKAGE
  • Mounting Type: Through Hole with PC Pins
  • Seated Height: 0.500" (12.70mm)
  • Operating Temperature: -10°C to 70°C
  • Industry Usage: Common-used Part
