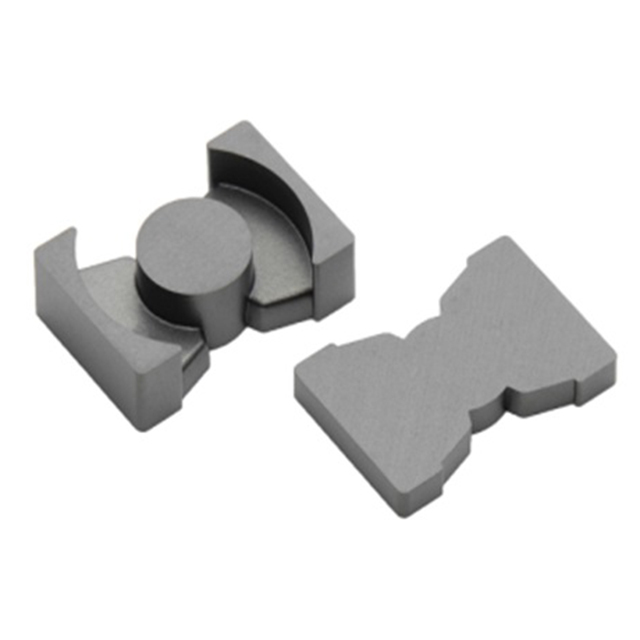

PC95PQI16/7.8Z-12

Name: PC95PQI16/7.8Z-12
Brand: TDK Corporation
SKU: 1478407
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PC95PQI16/7.8Z-12
Manufacturer	TDK Corporation
Catalog	Ferrite Cores
Description	Uncoated PC95 Ferrite Core HPQ, PQD Type 0.646" (16.40mm) Length 0.441" (11.20mm) Width Diameter 0.213" (5.40mm) Height
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	TDK Corporation
Series	Planar
Packaging	Tray
Core Type	HPQ, PQD
Supplier Device Package	PQI 16 x 7.8
Material	PC95
Inductance Factor (Al)	4.91 µH
Tolerance	±25%
Gap	Ungapped
Core Factor (ΣI/A) mm⁻¹	0.47
Effective Length (le) mm	41.8
Effective Area (Ae) mm2	19.5
Minimum Core Cross Section (Amin) mm2	37.6
Effective Magnetic Volume (Ve) mm3	815.0
Finish	Uncoated
Height	0.213" (5.40mm)
Length	0.646" (16.40mm)
Width	0.441" (11.20mm)
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.90.9630
Win Source Part Number	1478407-PC95PQI16/7.8Z-12
