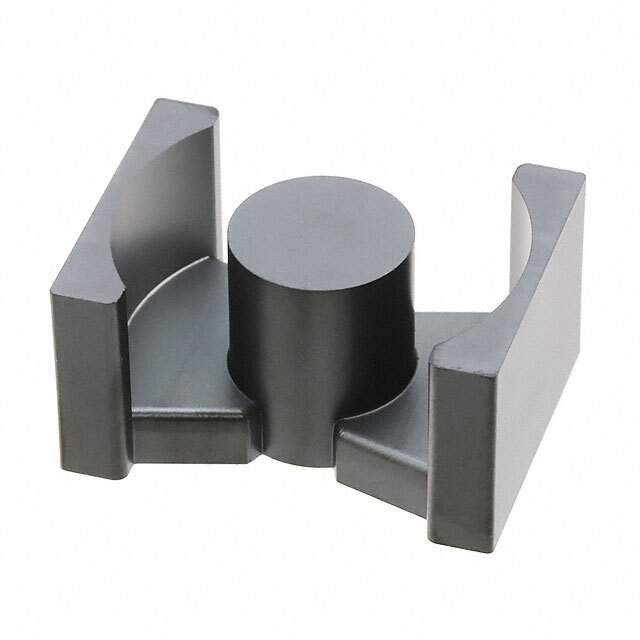

PC44PQ35/35Z-12 Real Image
Same model may have multiple batches, images only for reference.

PC44PQ35/35Z-12

Part No PC44PQ35/35Z-12
Manufacturer TDK Corporation
Catalog Ferrite Cores
Description FERRITE CORE FOR SW PWR 2PC SET / Uncoated PC44 Ferrite Core PQ Type 1.382" (35.10mm) Length 1.024" (26.00mm) Width Diameter 1.368" (34.75mm) Height
Datasheet
PC44PQ35/35Z-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Magnetics - Transformer, Inductor Components>Ferrite Cores
Mfr TDK Corporation
Package Tray
Core Type PQ
Supplier Device Package PQ 35 x 35
Material PC44
Tolerance ±25%
Gap Ungapped
Core Factor (ΣI/A) mm<sup>-1</sup> 0.448
Effective Length (le) mm 87.9
Effective Area (Ae) mm2 196
Effective Magnetic Volume (Ve) mm3 17300
Finish Uncoated
Height 1.368" (34.75mm)
Length 1.382" (35.10mm)
Width 1.024" (26.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.90.9630
Other Names PC44PQ35/35Z-12-N,445-175089
Standard Package 70
Win Source Part Number 1205493-PC44PQ35/35Z-12
Ultra Librarian 3D Model Ultra Librarian PC44PQ35/35Z-12 CAD Model

Description

The PC44PQ35/35Z-12 is a ferrite core for magnetics - transformer and inductor components.

  • Core Type: PQ
  • Coating: Uncoated
  • Supplier Device Package: PQ 35 x 35
  • Material: PC44
  • Effective Length: 87.9mm
  • Effective Area: 196mm²
  • Core Factor (ΣI/A): 0.448 mm⁻¹
