Same model may have multiple batches, images only for reference.

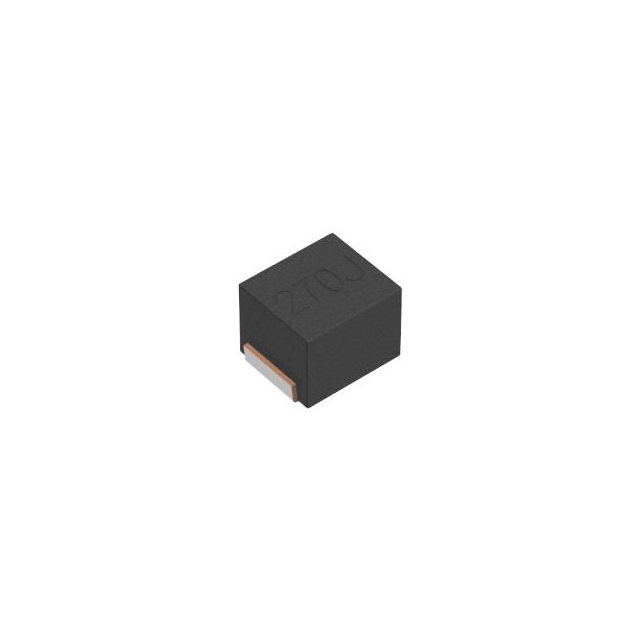

NLV25T-8R2J-PFD Real Image
Same model may have multiple batches, images only for reference.

NLV25T-8R2J-PFD

Part No NLV25T-8R2J-PFD
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 8.2UH 160MA 3.05 OHM / Inductor General Purpose Chip Molded/Unshielded Wirewound 8.2uH 5% 7.96MHz 25Q-Factor Ferrite 0.16A 3.05Ohm DCR 1008 Automotive T/R
Datasheet
NLV25T-8R2J-PFD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series NLV-PFD
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 8.2μH
Tolerance ±5%
Current Rating 160mA
Shielding Unshielded
DC Resistance (DCR) 3.05 Ohm Max
Q @ Freq 25 @ 7.96MHz
Frequency - Self Resonant 36MHz
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 105°C
Test Frequency 7.96MHz
Mounting SMD
Package 1008 (2520 Metric)
Manufacturer Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.075" (1.90mm)
Win Source Part Number 790733-NLV25T-8R2J-PFD
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Family Name NLV-PFD
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian NLV25T-8R2J-PFD CAD Model

Description

The TDK Corporation NLV25T-8R2J-PFD is a wirewound type inductor with a packaging of reel package.

  • Inductance: 8.2μH
  • Tolerance: ±5%
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height - Seated (Maximum): 0.075" (1.90mm)
  • Quantity Per Package: 2k pcs
