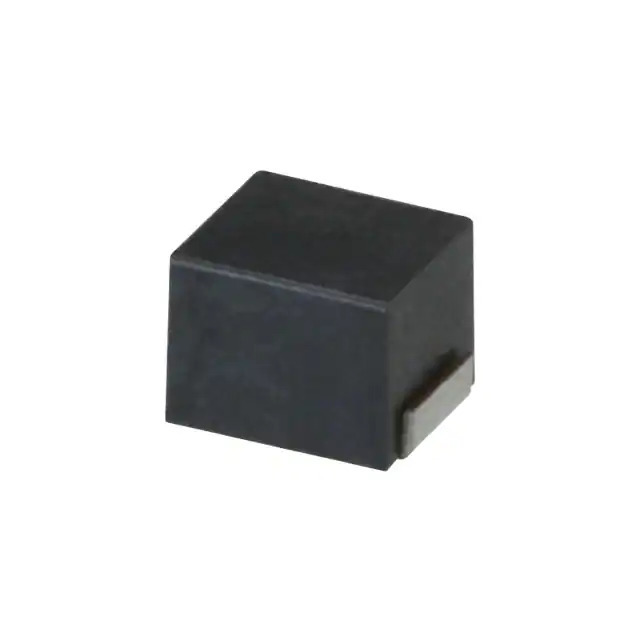

NLV25T-680J-EFD

Name: NLV25T-680J-EFD
Brand: TDK Corporation
SKU: 1370300
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NLV25T-680J-EFD
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 68UH 70MA 16.6 OHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	TDK Corporation
Series	NLV-EFD
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	68 µH
Tolerance	±5%
Current Rating (Amps)	70 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	16.6Ohm Max
Q @ Freq	20 @ 2.52MHz
Frequency - Self Resonant	15MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	2.52 MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.075" (1.90mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1370300-NLV25T-680J-EFD
Ultra Librarian 3D Model	Ultra Librarian NLV25T-680J-EFD CAD Model

Alternative Products

Description

The 1370300-NLV25T-680J-EFD is a drum core, wirewound inductor from TDK Corporation.

Size: 1008 (2520 Metric)
Tolerance: ±5%
Inductance: 68 μH
DC Resistance: 16.6Ohm Max
Shielding: Unshielded
Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
Current Rating: 70 mA
Series: NLV-EFD
AEC-Q200: Yes
Application: Automotive
Status: Active
REACH: Affected
