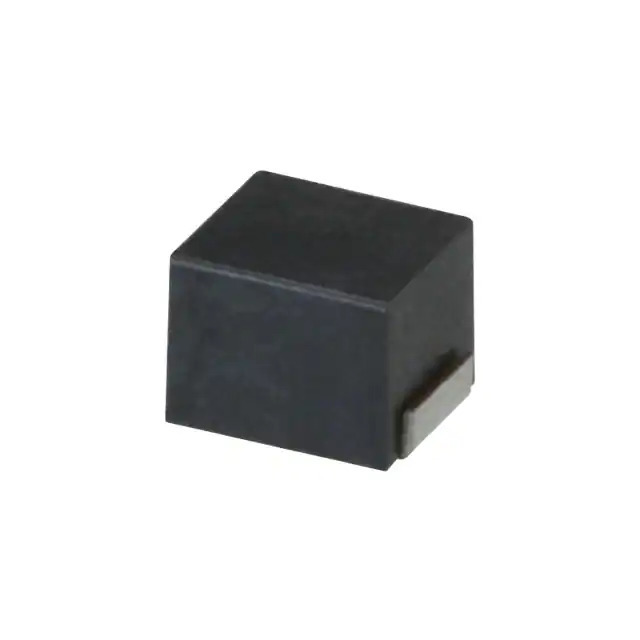

NLV25T-1R8J-EF TDK Corporation
Same model may have multiple batches, images only for reference.

NLV25T-1R8J-EF

Part No NLV25T-1R8J-EF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.8UH 210MA 1.45OHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series NLV-EF
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.8 µH
Tolerance ±5%
Current Rating (Amps) 210 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 1.45Ohm Max
Q @ Freq 30 @ 7.96MHz
Frequency - Self Resonant 135MHz
Ratings -
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 7.96 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.075" (1.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370021-NLV25T-1R8J-EF
Ultra Librarian 3D Model Ultra Librarian NLV25T-1R8J-EF CAD Model

Description

The NLV-EF series from TDK Corporation is a range of fixed inductors designed for various electronic applications.

  • Inductance: 1.8 µH
  • Tolerance: ±5%
  • Type: Drum Core, Wirewound
  • Size (L x W): 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.075" (1.90mm)
  • Current Rating: 210 mA
  • DC Resistance (DCR): 1.45Ohm
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Product Status: Active
