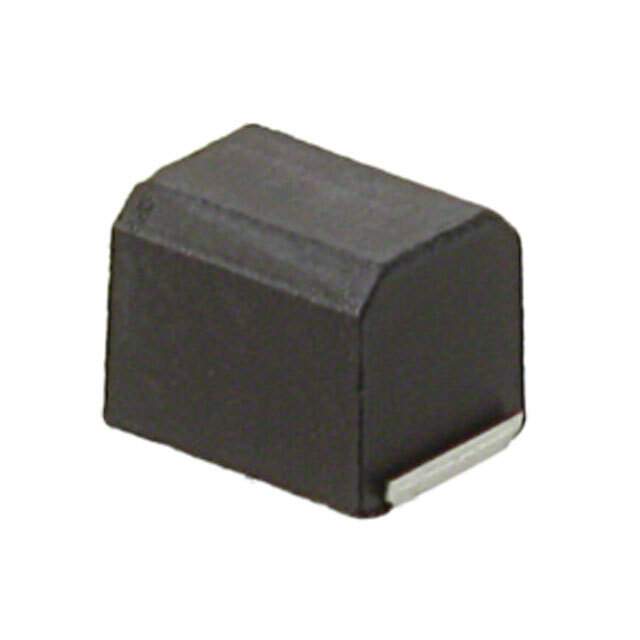

The NLFC453232T-1R5M is a ferrite chip inductor manufactured by TDK Corporation. It is designed for use in power supply circuits and other applications where noise suppression and impedance matching are required. This inductor features a small size and high current handling capability.

Applications:


• Power Line Filtering

• DC-DC Converters

• Noise Suppression in Power Supplies

• Impedance Matching

• RF Circuits

Features:


• Ferrite Core: Provides high impedance over a wide frequency range.

• Small Size: Compact footprint for space-constrained applications.

• High Current Capacity: Designed to handle significant current flow.

• Surface Mount Technology (SMT): Suitable for automated assembly.

Benefits:


• Effective Noise Filtering: Suppresses unwanted noise and interference in power lines and other circuits.

• Efficient Power Conversion: Improves the performance of DC-DC converters.

• Simplified Circuit Design: Easy to integrate into existing circuits.

• Reduced Board Space: The small size allows for dense component placement.

Additional Details:

The '1R5M' in the part number indicates an inductance value of 1.5 μH and a tolerance of ±20%. Key electrical specifications include the DC resistance (DCR), self-resonant frequency (SRF), and rated current. The NLFC453232T-1R5M is typically supplied on tape and reel for automated placement. Refer to the manufacturer's datasheet for detailed specifications, including temperature characteristics and soldering recommendations.
